Bonnard draws a bar chart to compare categories or periods.

The examples use Acme, a demo retailer that reports in pounds. Each variant is a few words in the question. A follow-up changes a chart already drawn.

How an agent draws it

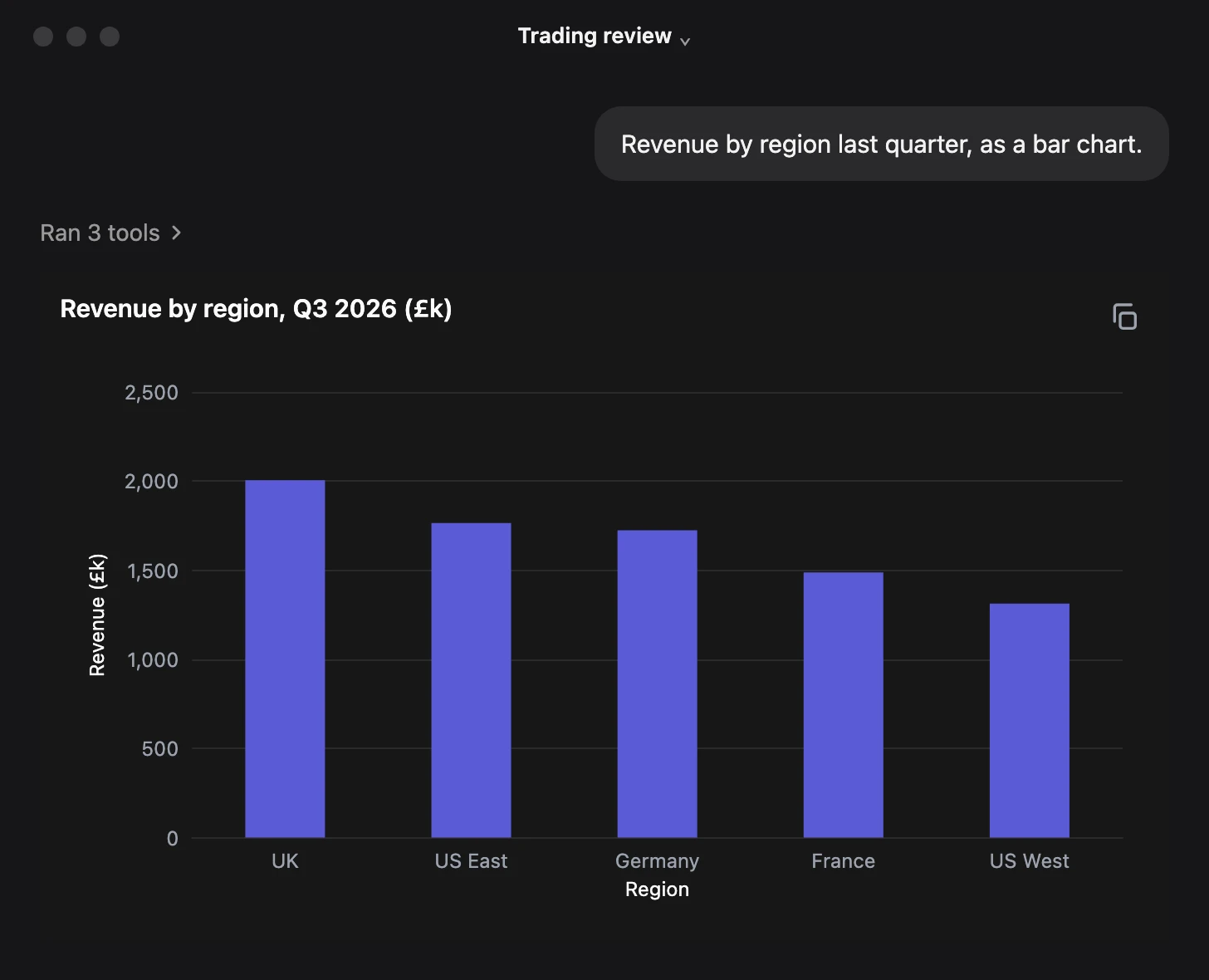

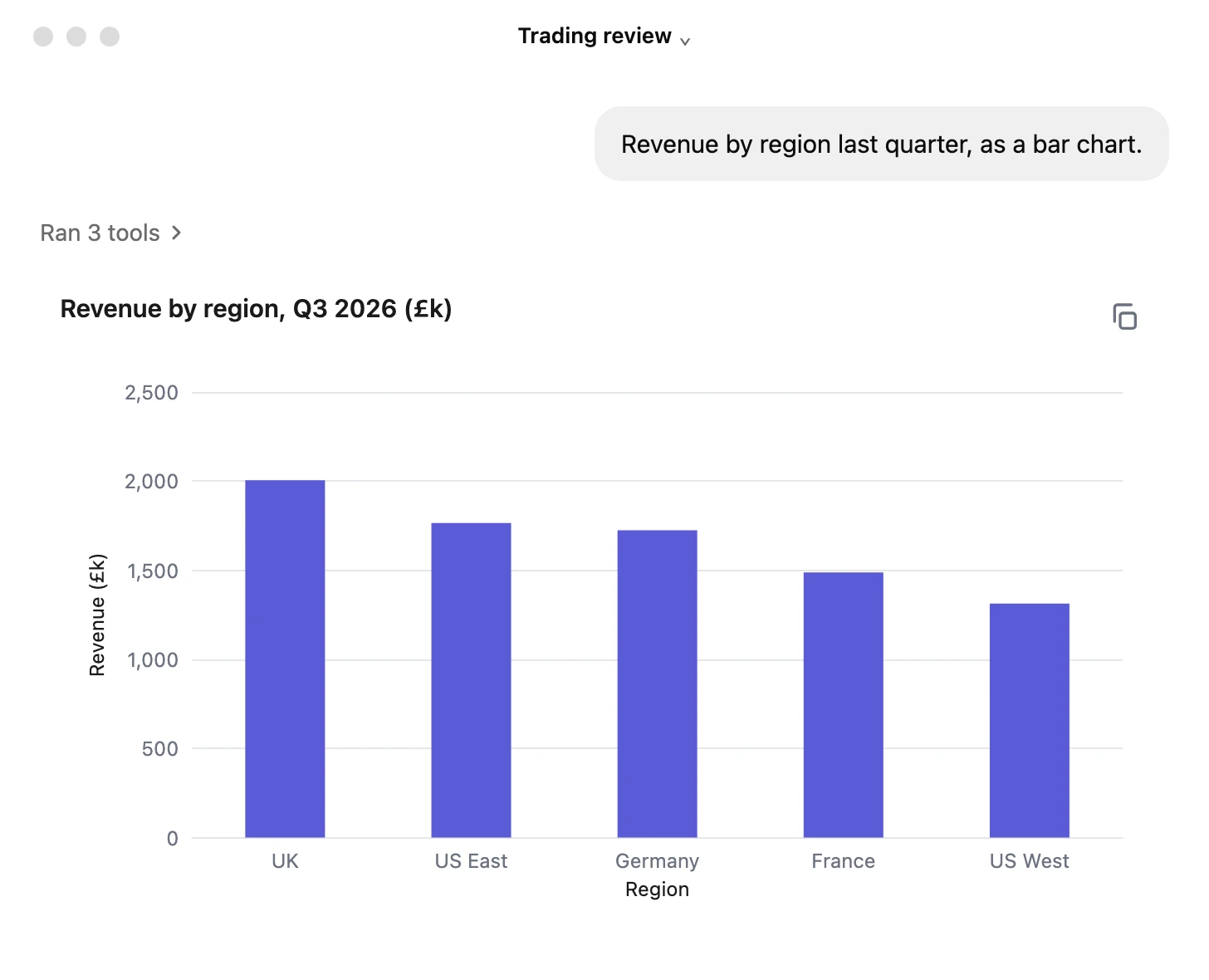

The chat above ran three tools, in this order:

  1. explore_schema finds the tables and their columns: here orders, with order_date, region and revenue.
  2. sql_query runs a read-only query, so the agent can check the numbers first.
  3. render_chart takes the SQL and the chart options. It runs the query and returns the chart the chat draws.

The render_chart call behind the chart above:

render_chartjson

JSON

{
  "charts": [
    {
      "sql": "SELECT region, SUM(revenue) / 1000 AS revenue FROM orders WHERE order_date >= DATE '2026-07-01' AND order_date < DATE '2026-10-01' GROUP BY region ORDER BY revenue DESC",
      "chartType": "bar",
      "title": "Revenue by region, Q3 2026 (£k)",
      "encode": { "x": "region", "y": "revenue" },
      "fields": [
        { "name": "region", "label": "Region" },
        { "name": "revenue", "label": "Revenue (£k)", "format": "number" }
      ]
    }
  ]
}

A call takes up to 10 charts, shown as a carousel. Each example below shows its one entry. A connected agent reads the full option reference with explore_docs, topic charts/bar.

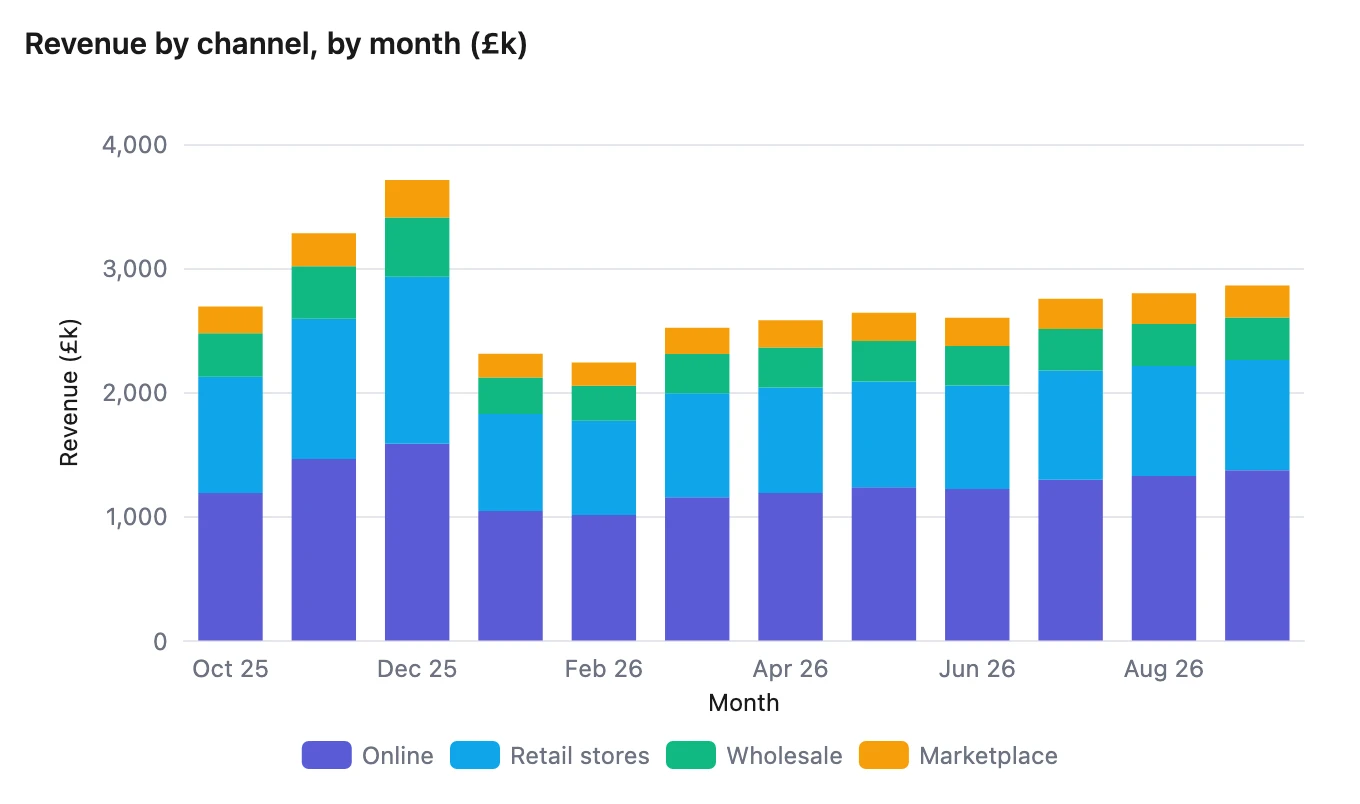

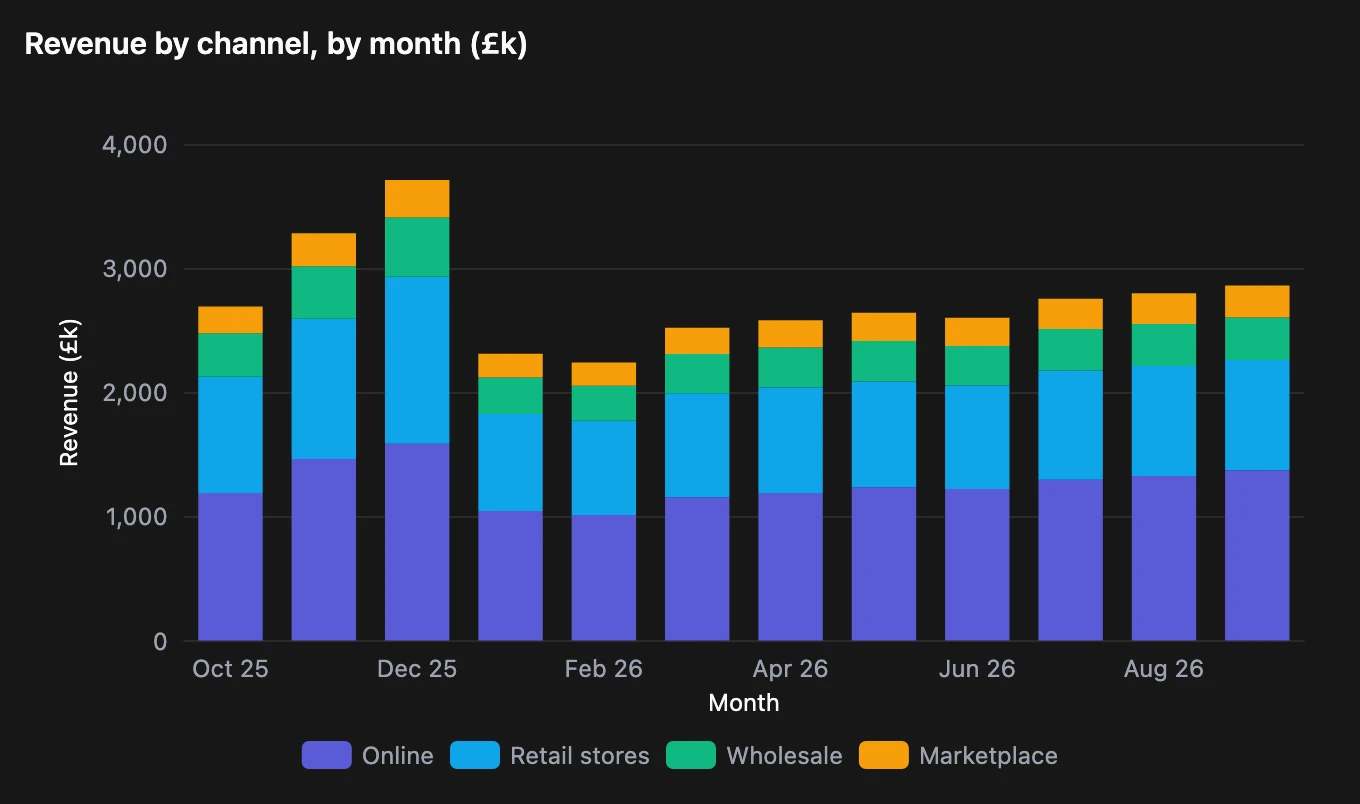

Stacked bars

Prompt

Revenue by channel for the last 12 months, stacked.

render_chartjson

JSON

{
  "sql": "SELECT date_trunc('month', order_date) AS month, channel, SUM(revenue) / 1000 AS revenue FROM orders WHERE order_date >= DATE '2025-10-01' GROUP BY 1, 2 ORDER BY 1",
  "chartType": "bar",
  "stacking": "stacked",
  "title": "Revenue by channel, by month (£k)",
  "encode": { "x": "month", "y": "revenue", "series": "channel" },
  "fields": [
    { "name": "month", "label": "Month" },
    { "name": "revenue", "label": "Revenue (£k)", "format": "number" }
  ]
}

Each bar is the month’s total, split by channel. “As a share of the total” stacks each bar to 100%.

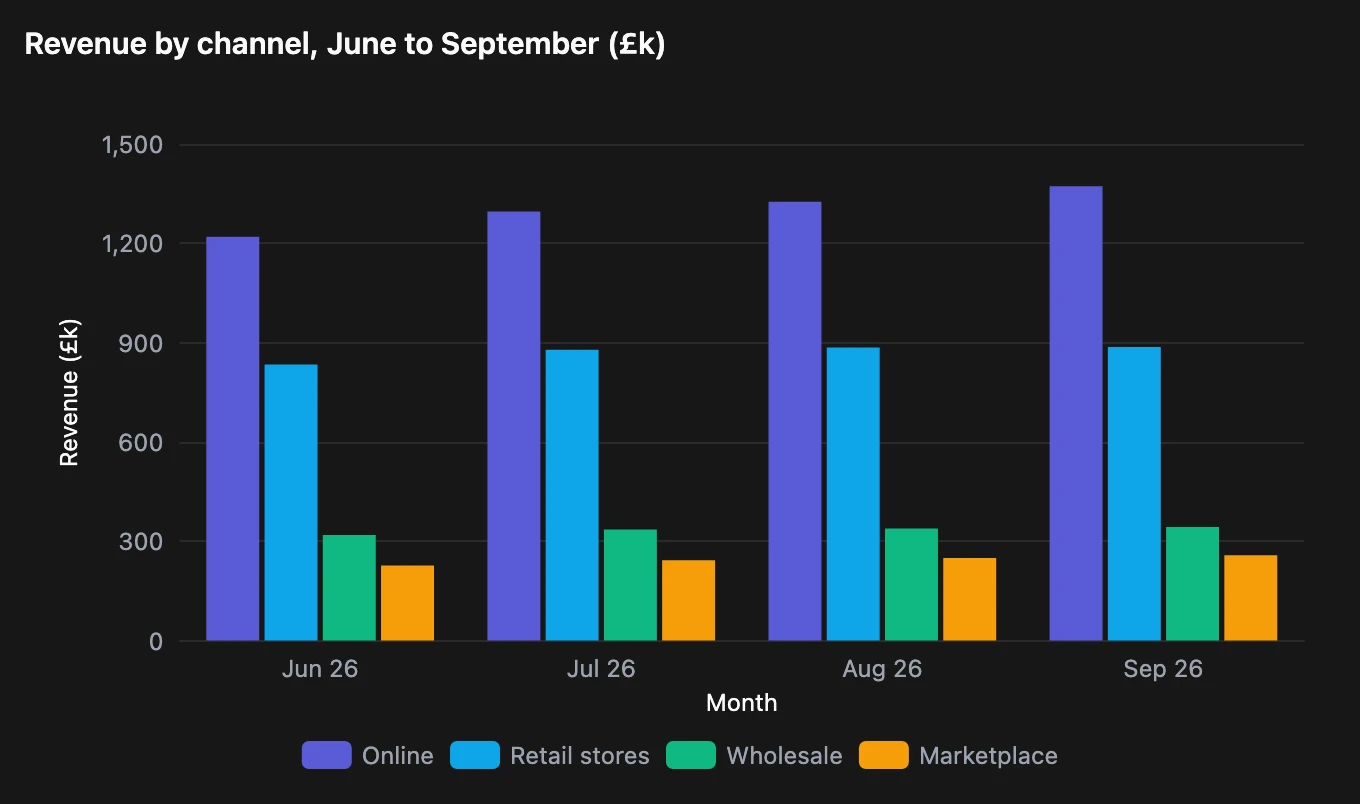

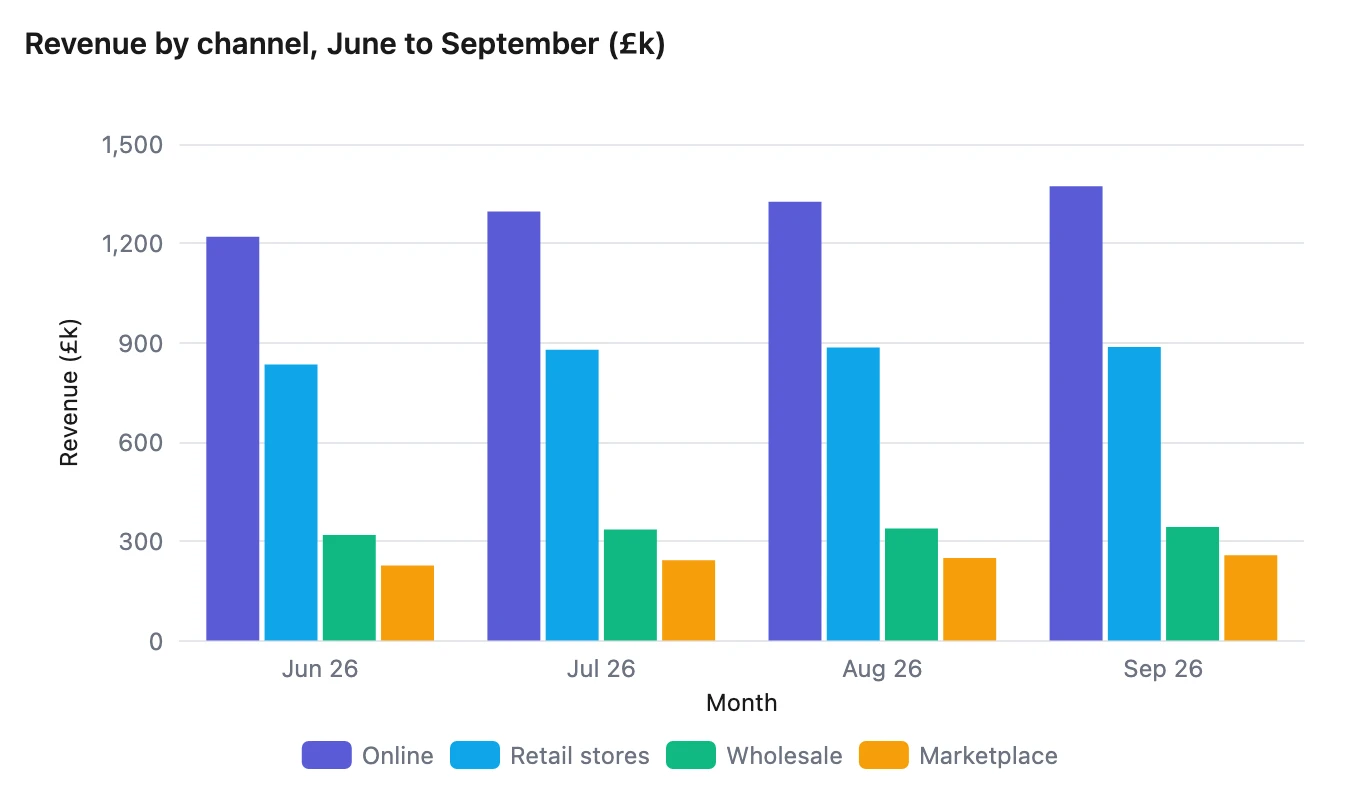

Side by side

Prompt

Revenue by channel for the last four months, side by side.

render_chartjson

JSON

{
  "sql": "SELECT date_trunc('month', order_date) AS month, channel, SUM(revenue) / 1000 AS revenue FROM orders WHERE order_date >= DATE '2026-06-01' GROUP BY 1, 2 ORDER BY 1",
  "chartType": "bar",
  "stacking": "grouped",
  "title": "Revenue by channel, June to September (£k)",
  "encode": { "x": "month", "y": "revenue", "series": "channel" },
  "fields": [
    { "name": "month", "label": "Month" },
    { "name": "revenue", "label": "Revenue (£k)", "format": "number" }
  ]
}

Each channel gets its own bar. Bonnard draws a split this way unless the question says otherwise.

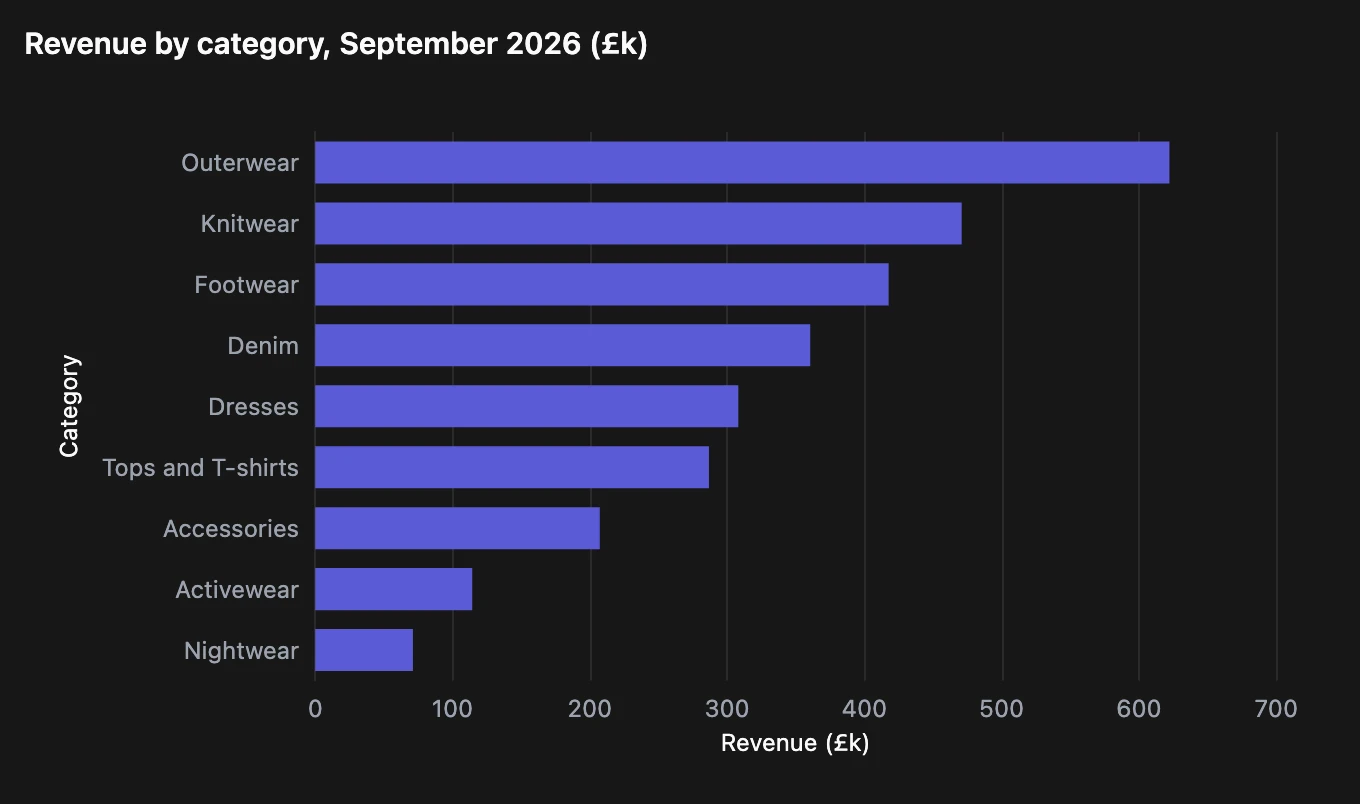

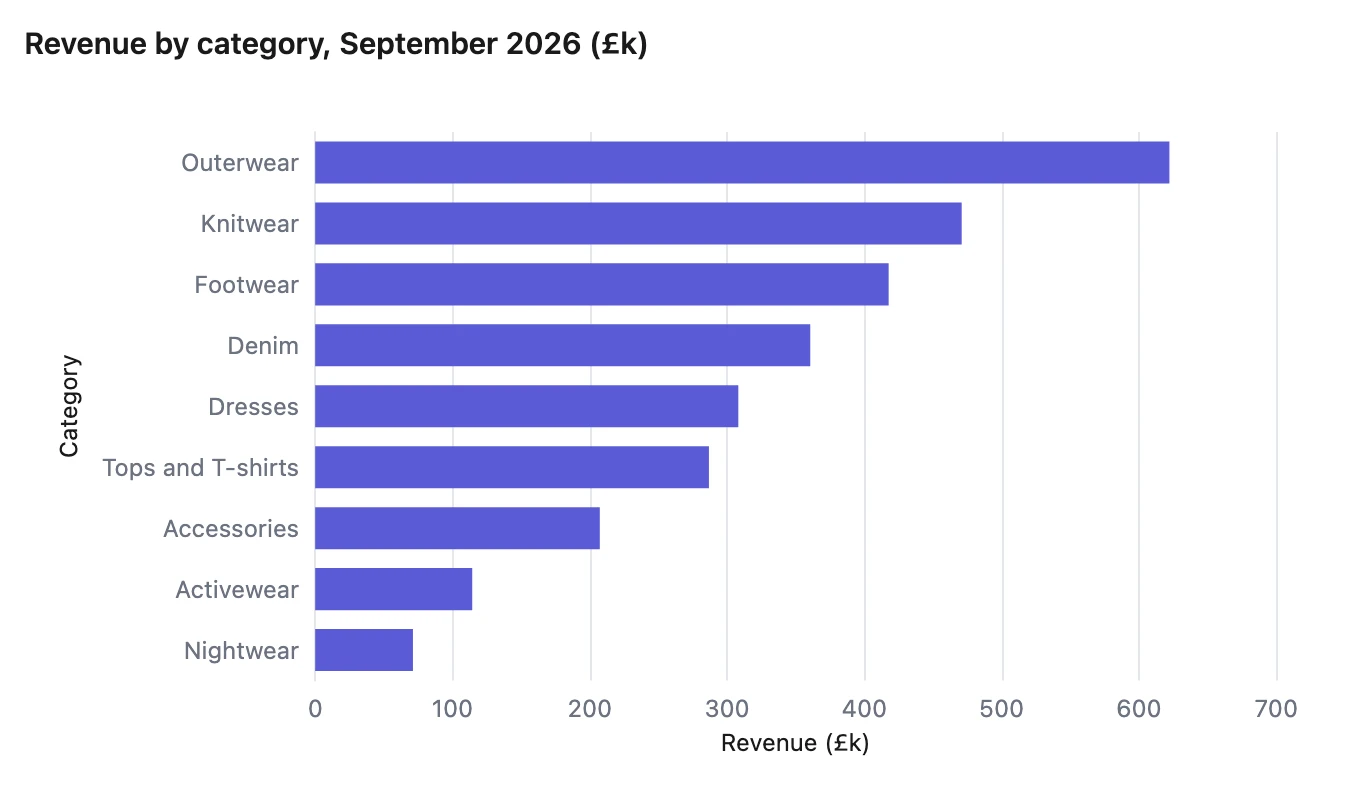

Horizontal bars

Prompt

Revenue by product category in September.

render_chartjson

JSON

{
  "sql": "SELECT category, SUM(revenue) / 1000 AS revenue FROM order_lines WHERE order_date >= DATE '2026-09-01' AND order_date < DATE '2026-10-01' GROUP BY category ORDER BY revenue DESC",
  "chartType": "bar",
  "title": "Revenue by category, September 2026 (£k)",
  "encode": { "x": "category", "y": "revenue" },
  "fields": [
    { "name": "category", "label": "Category" },
    { "name": "revenue", "label": "Revenue (£k)", "format": "number" }
  ]
}

Bars turn sideways on their own when a label runs past 12 characters, as “Tops and T-shirts” does. Say “horizontal” or “upright” to choose.

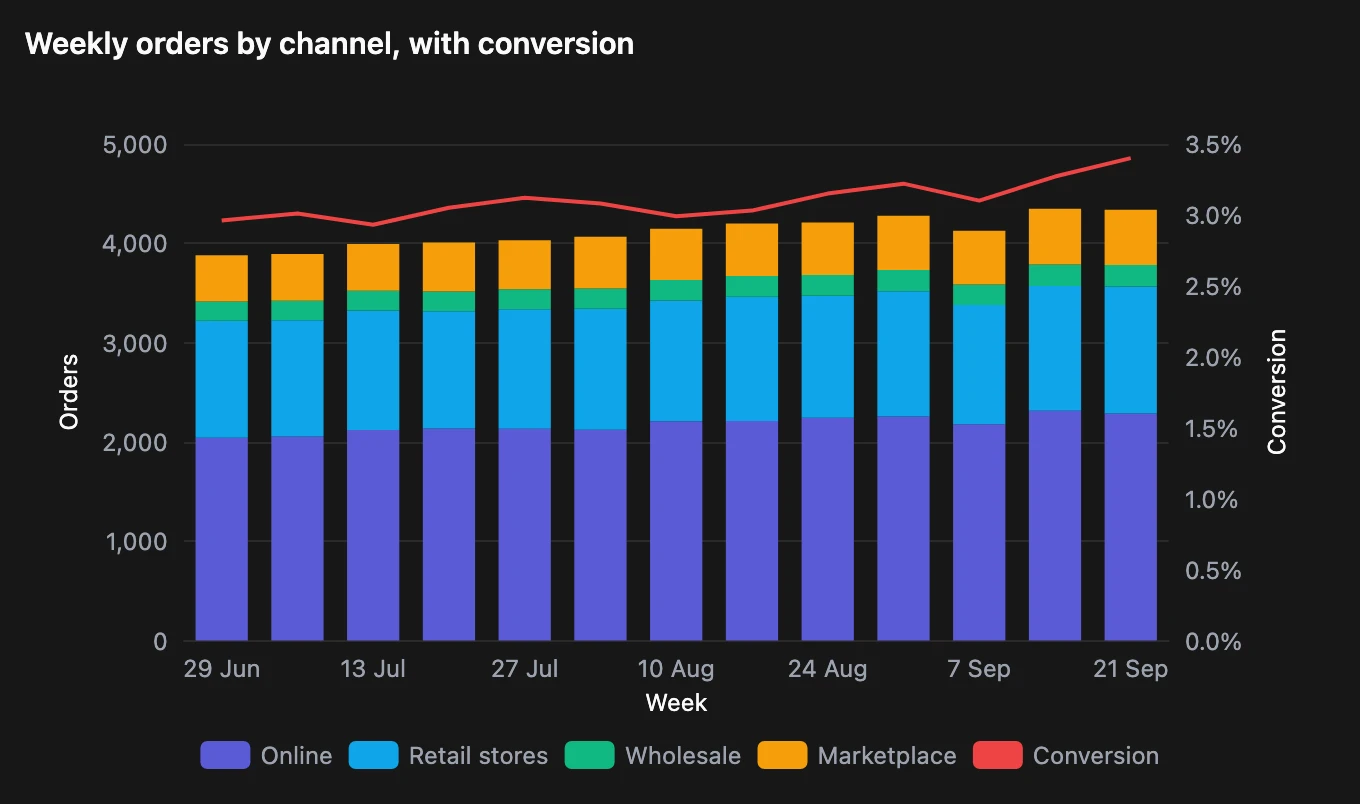

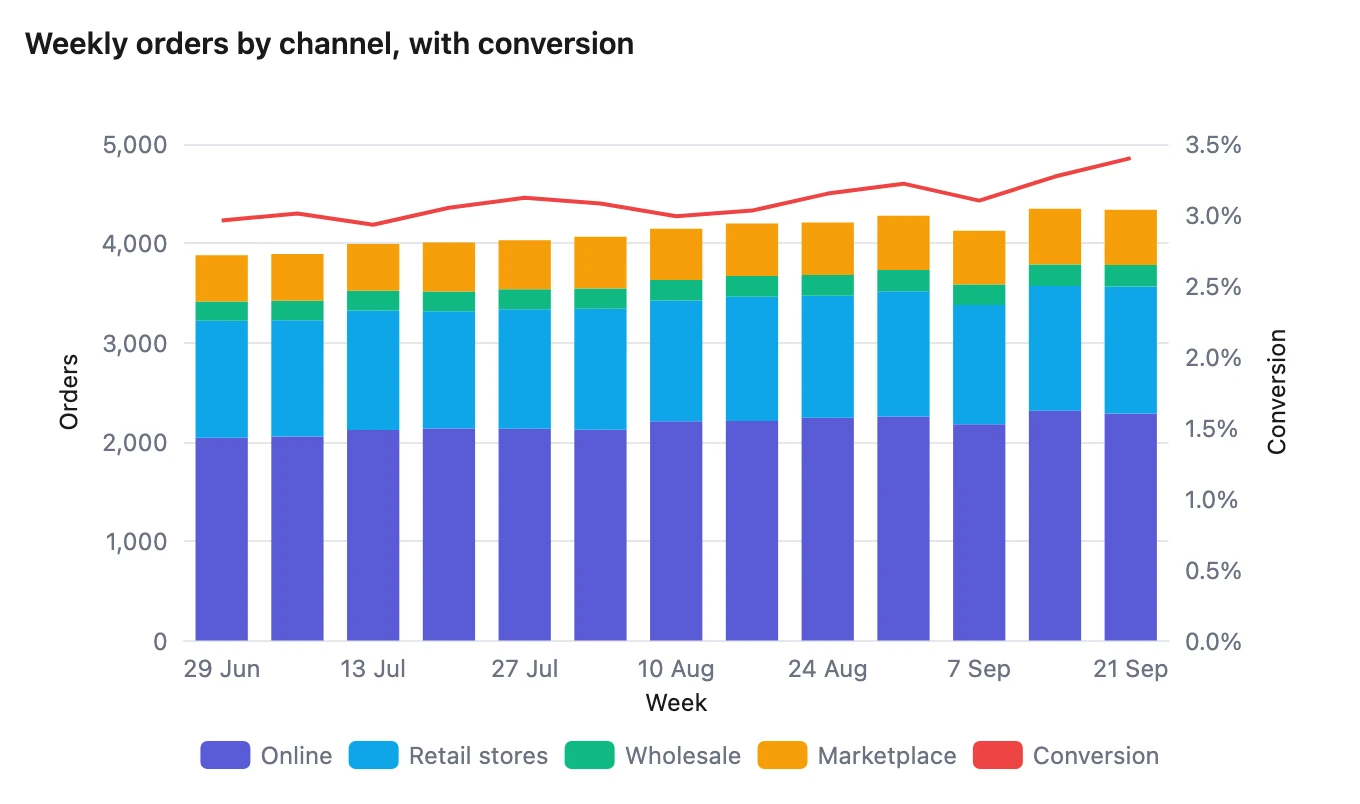

A second axis

Prompt

Weekly orders stacked by channel, with the conversion rate as a line on the right.

render_chartjson

JSON

{
  "sql": "SELECT week_label AS week, channel, orders, conversion FROM weekly_channel_orders WHERE week_start >= DATE '2026-06-29' ORDER BY week_start",
  "chartType": "bar",
  "stacking": "stacked",
  "xAxisType": "categorical",
  "title": "Weekly orders by channel, with conversion",
  "encode": { "x": "week", "y": "orders", "series": "channel", "y2": "conversion" },
  "fields": [
    { "name": "week", "label": "Week" },
    { "name": "orders", "label": "Orders", "format": "number" },
    { "name": "conversion", "label": "Conversion", "format": "percent" }
  ]
}

A measure in other units goes on a right axis, drawn as a line outside the stack.

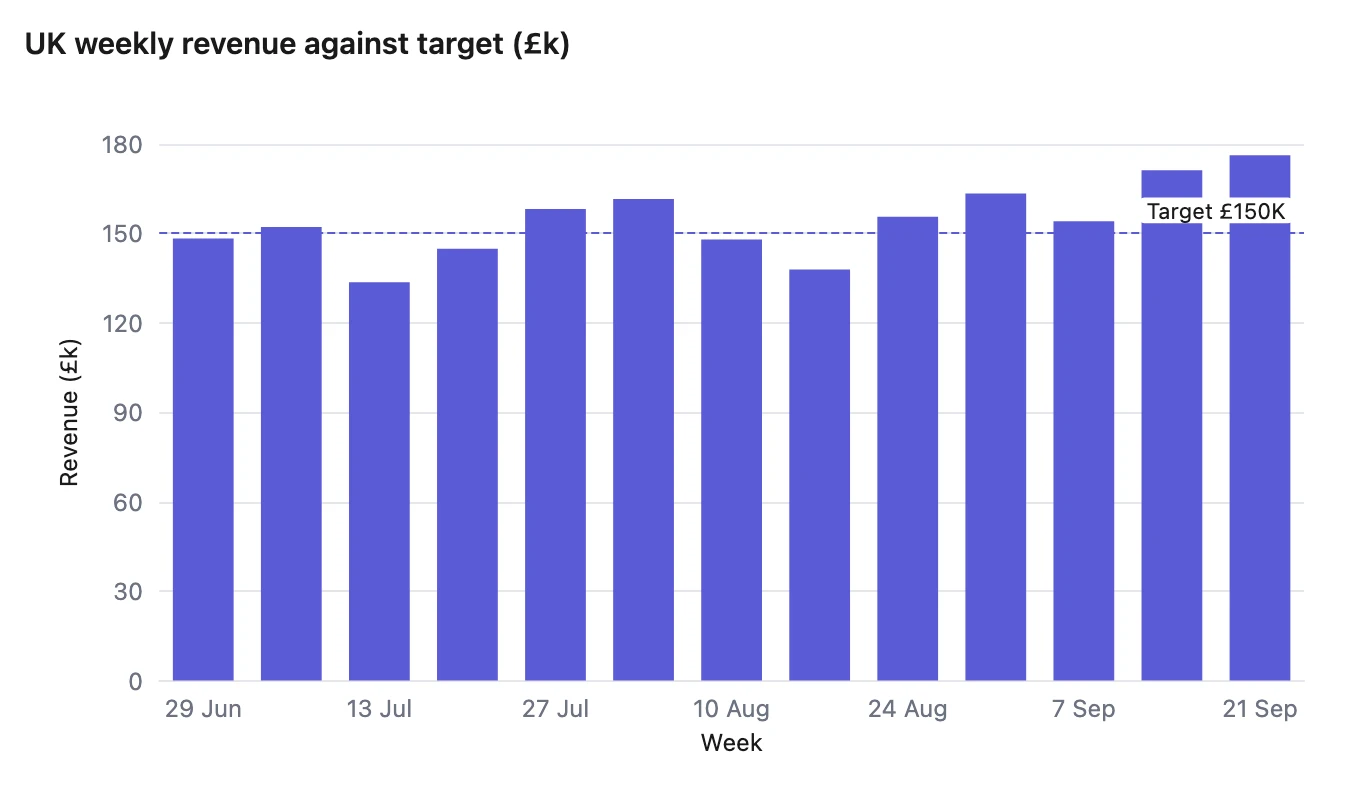

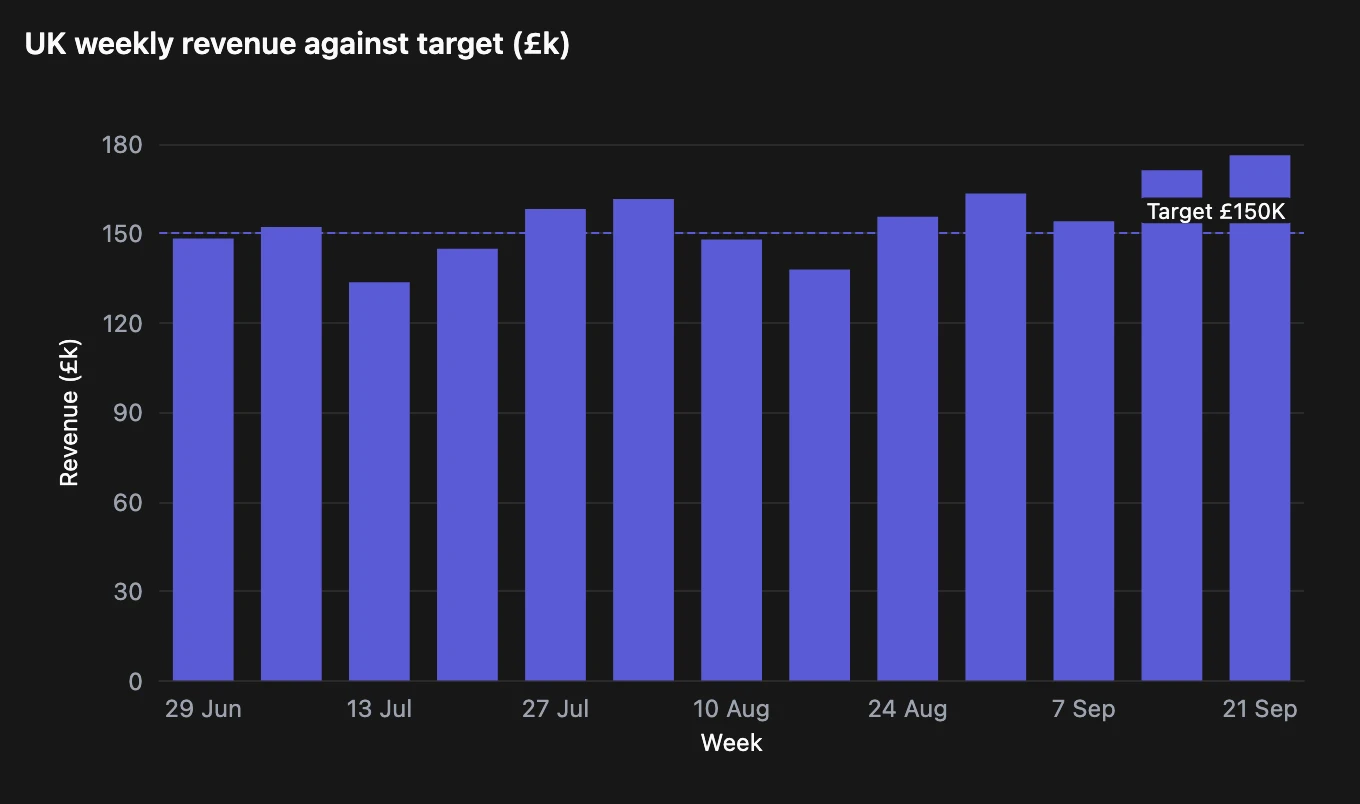

A target line

Prompt

UK weekly revenue since July, with a line at the £150K target.

render_chartjson

JSON

{
  "sql": "SELECT week_label AS week, revenue / 1000 AS revenue FROM weekly_region_revenue WHERE region = 'UK' AND week_start >= DATE '2026-06-29' ORDER BY week_start",
  "chartType": "bar",
  "xAxisType": "categorical",
  "title": "UK weekly revenue against target (£k)",
  "encode": { "x": "week", "y": "revenue" },
  "fields": [
    { "name": "week", "label": "Week" },
    { "name": "revenue", "label": "Revenue (£k)", "format": "number" }
  ],
  "reference": [
    { "y": 150, "label": "Target £150K" }
  ]
}

Targets, budgets, shaded bands and average or median lines work the same way, up to six on one chart.

Options and limits

What a bar chart takes
Ask forWhat Bonnard draws
”stacked”Series stacked in each bar
”as a share of the total”A 100% stack, each series as its share of the bar
”side by side”One bar per series, the default for a split
”horizontal” or “upright”Bars turned sideways, or kept upright
”with the forecast as a line”A measure drawn as a line on the same axis, outside the stack
”on the right”A second axis for a measure in other units
”a target line” or “the average”Reference lines and bands, up to six
”make outerwear stand out”Up to three bars or series highlighted
”on a timeline”Dates spaced by the time between them
”with a moving average” or “a trend line”A dashed line computed over each series, the bars faded behind it
”missing months as zero”Periods with no row drawn as 0, carried forward, or left empty
”start the axis at 100”A fixed axis range, or one fitted to the data
  • There is no cap on bars or series.
  • A chart query returns up to 5,000 rows by default.
  • A line over the bars or a second axis keeps the chart upright.
  • A 100% stack and horizontal bars keep one slot per row, never a timeline.
  • Labels and axis titles run to 60 characters. When bars cannot turn sideways, category labels over 11 characters are cut short and tilted.
  • A bar chart draws no data labels. No chart draws a log scale, custom hex colours or zoom.

When Bonnard draws something else

  • A histogram is a bar chart over buckets. The agent computes the buckets in SQL, then draws the bars.
  • Many categories: the agent keeps the top rows, or groups the rest as “Other” in SQL.
