Line charts in your AI client

Bonnard draws a line chart to show a trend over time or along another ordered axis.

The examples use Acme, a demo retailer that reports in pounds. Each variant is a few words in the question. A follow-up changes a chart already drawn.

How an agent draws it

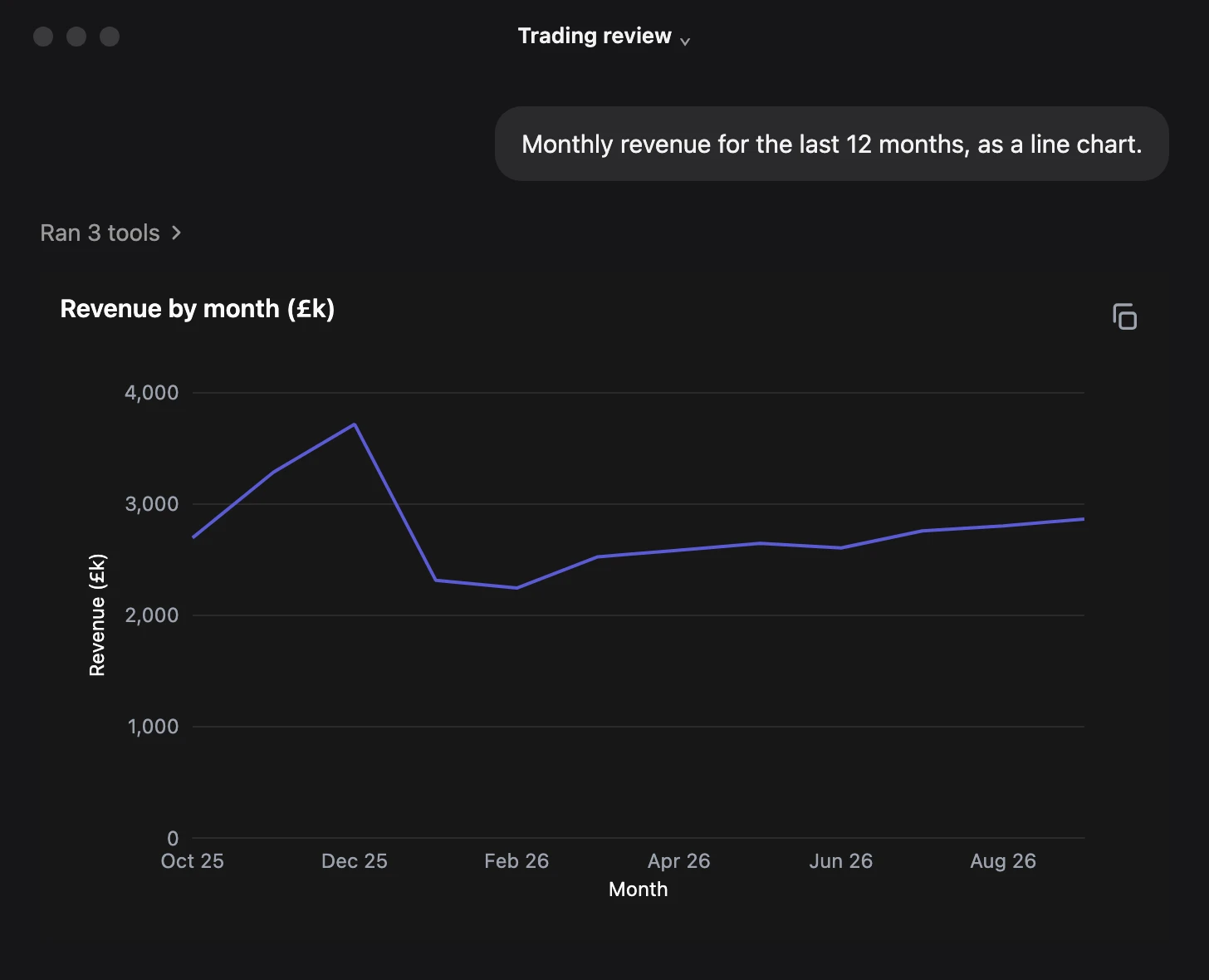

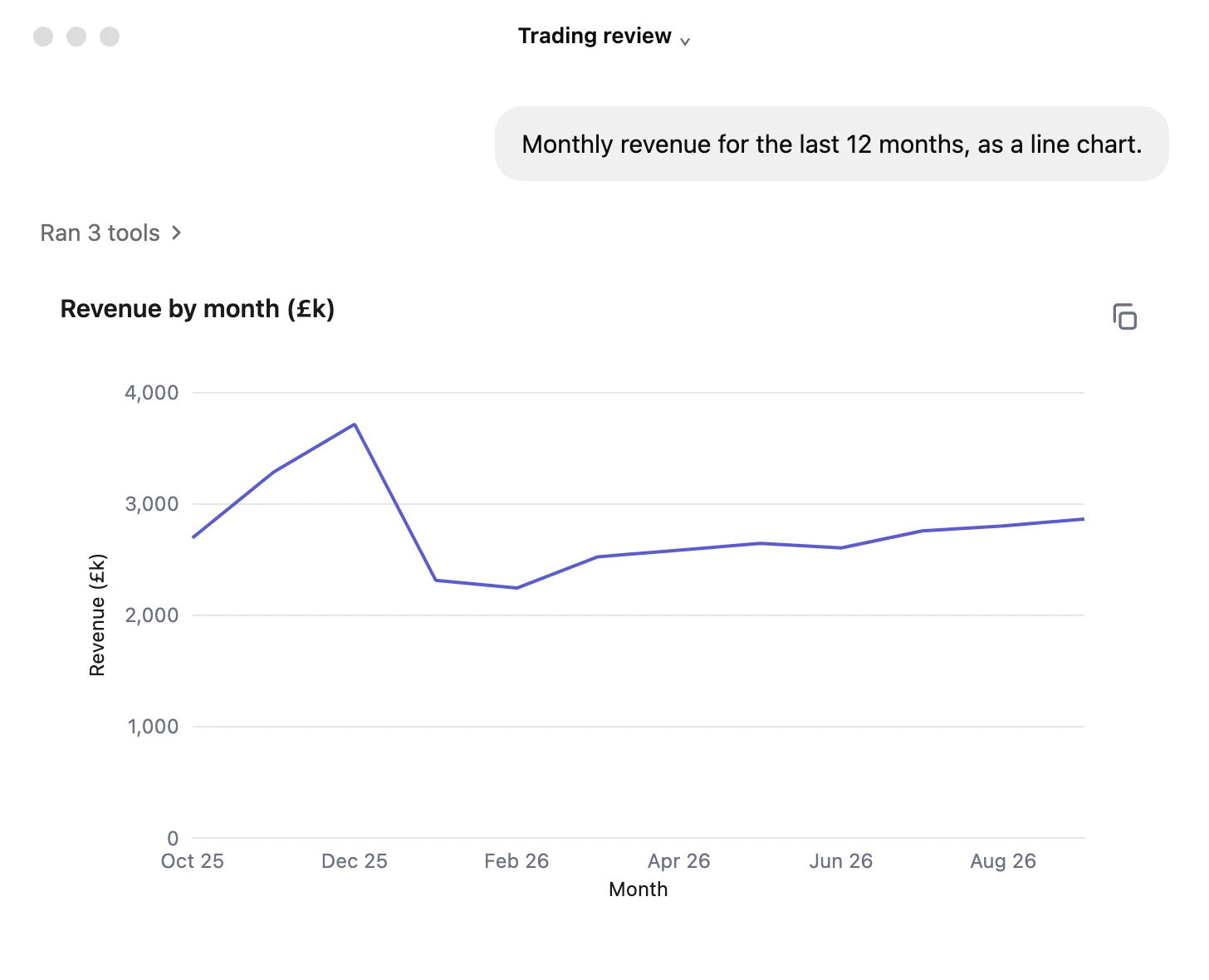

The chat above ran three tools, in this order:

1. explore_schema finds the tables and their columns: here orders, with order_date and revenue.
2. sql_query runs a read-only query, so the agent can check the numbers first.
3. render_chart takes the SQL and the chart options. It runs the query and returns the chart the chat draws.

The render_chart call behind the chart above:

{
  "charts": [
    {
      "sql": "SELECT date_trunc('month', order_date) AS month, SUM(revenue) / 1000 AS revenue FROM orders WHERE order_date >= DATE '2025-10-01' AND order_date < DATE '2026-10-01' GROUP BY 1 ORDER BY 1",
      "chartType": "line",
      "xAxisType": "categorical",
      "title": "Revenue by month (£k)",
      "encode": { "x": "month", "y": "revenue" },
      "fields": [
        { "name": "month", "label": "Month" },
        { "name": "revenue", "label": "Revenue (£k)", "format": "number" }
      ]
    }
  ]
}

A call takes up to 10 charts, shown as a carousel. Each example below shows its one entry. A connected agent reads the full option reference with explore_docs, topic charts/line.

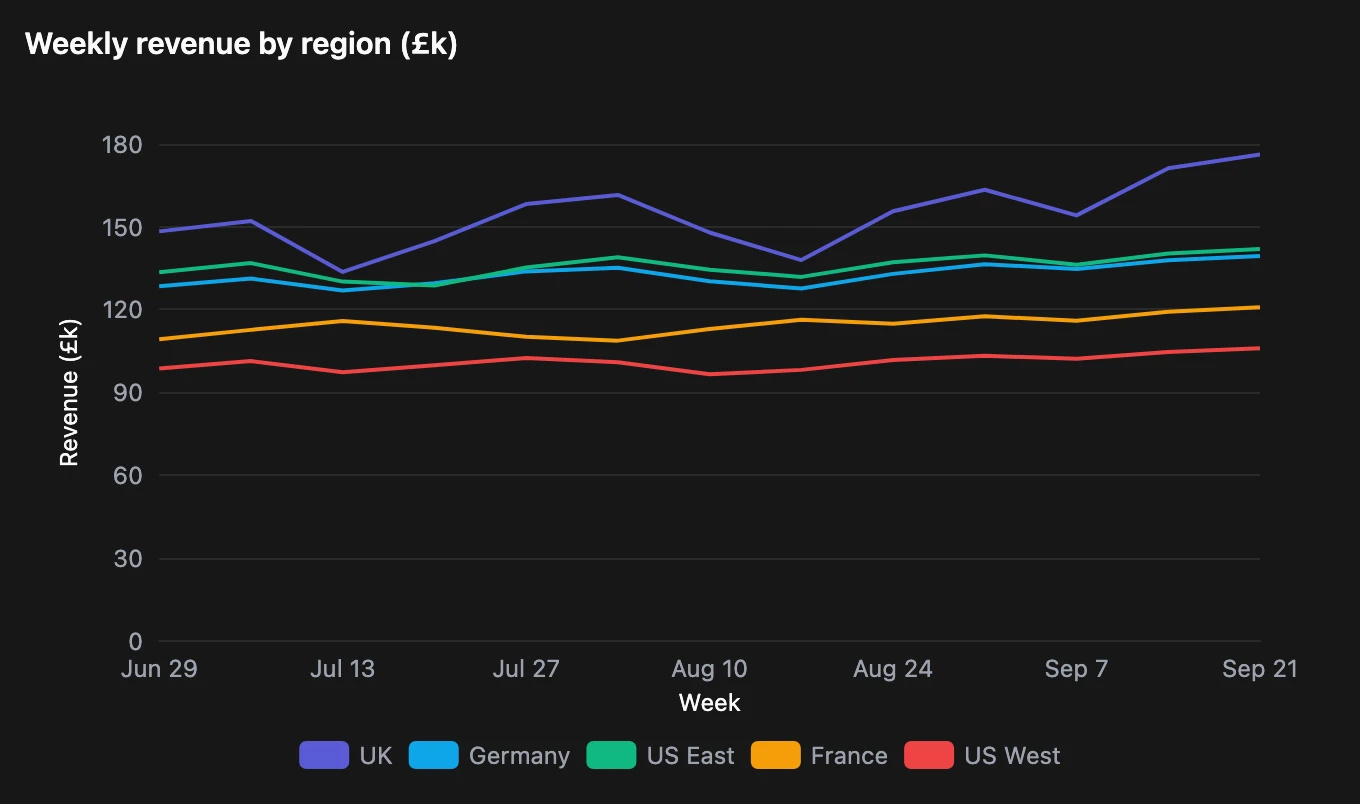

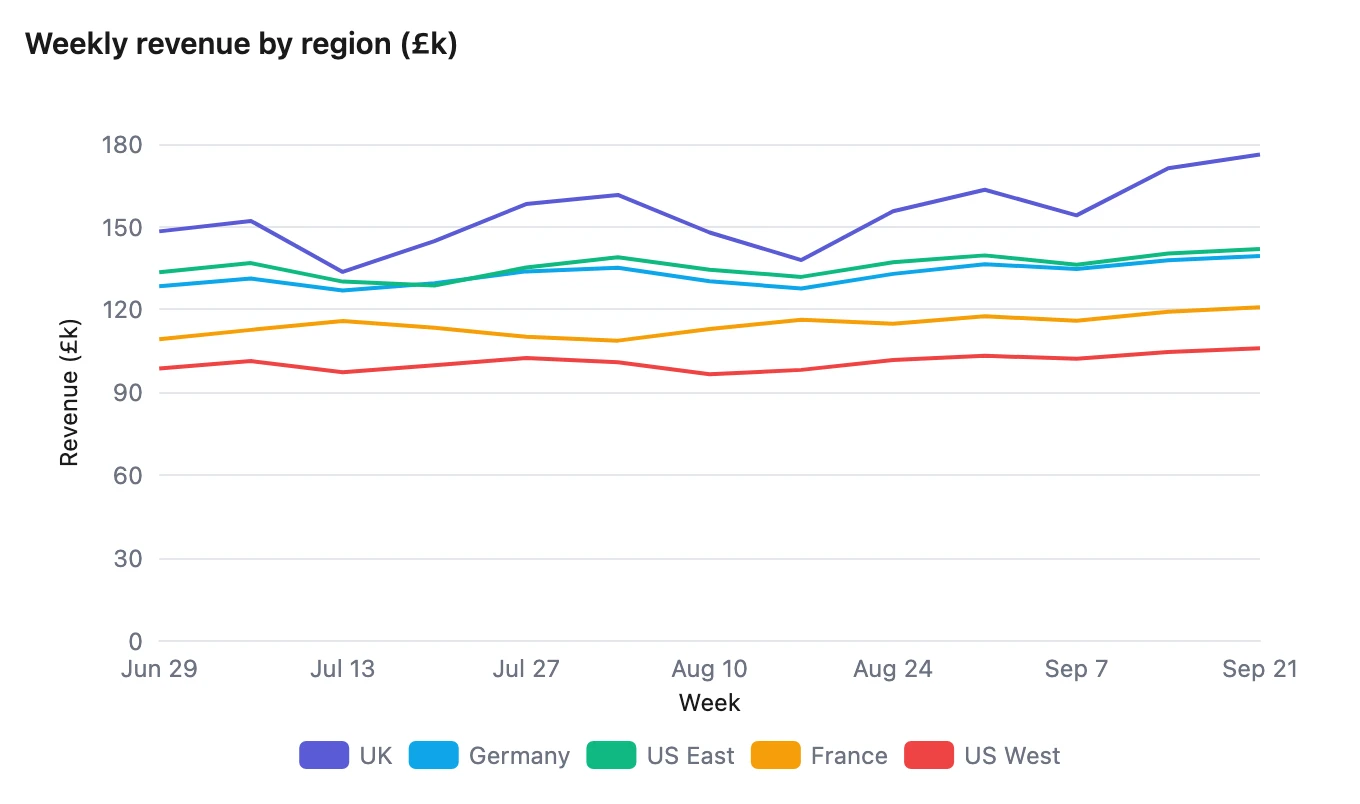

One line per region

Prompt

Weekly revenue by region since July, one line per region.

render_chartjson

JSON

Copy

{
  "sql": "SELECT week_start AS week, region, revenue / 1000 AS revenue FROM weekly_region_revenue WHERE week_start >= DATE '2026-06-29' ORDER BY week_start",
  "chartType": "line",
  "xAxisType": "categorical",
  "title": "Weekly revenue by region (£k)",
  "encode": { "x": "week", "y": "revenue", "series": "region" },
  "fields": [
    { "name": "week", "label": "Week" },
    { "name": "revenue", "label": "Revenue (£k)", "format": "number" }
  ]
}

A split draws one line per value of a column, each in its own colour, with a legend below.

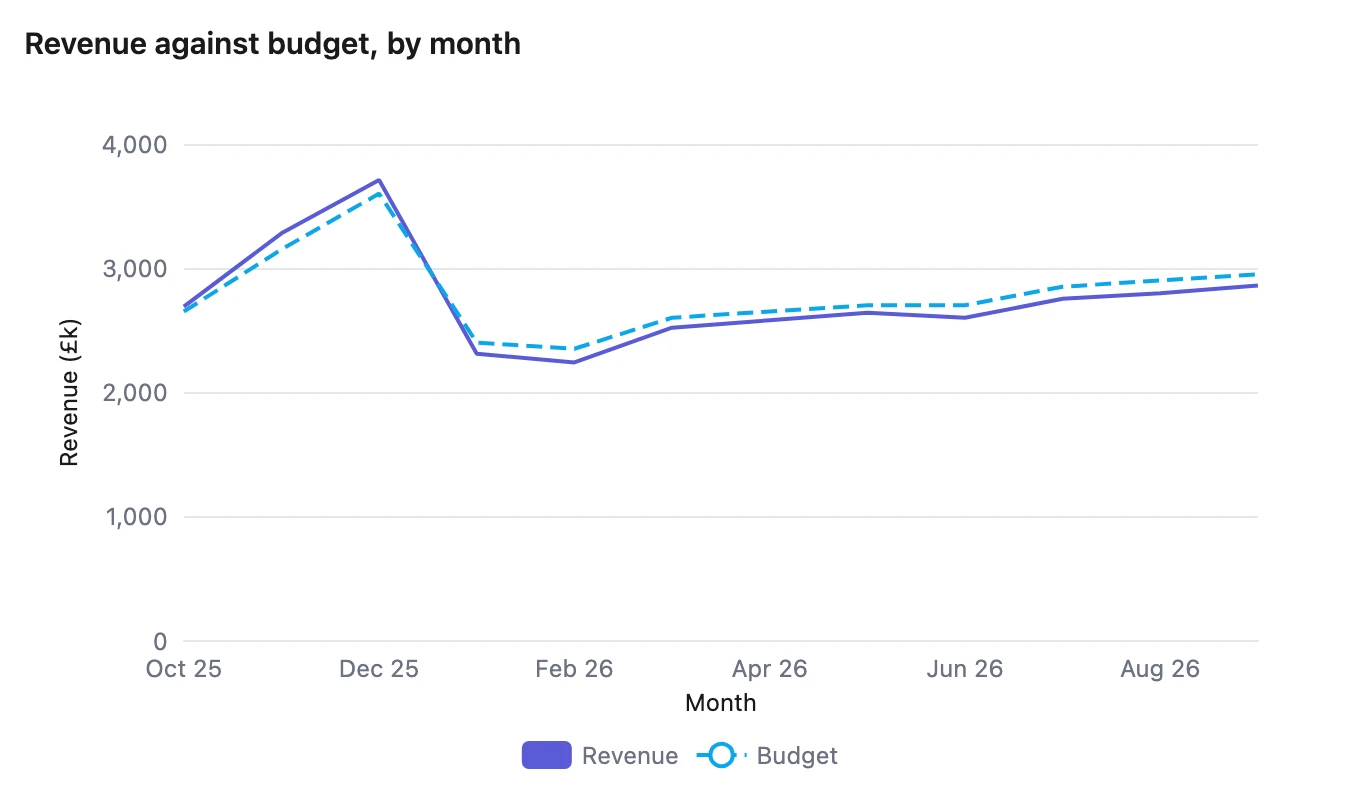

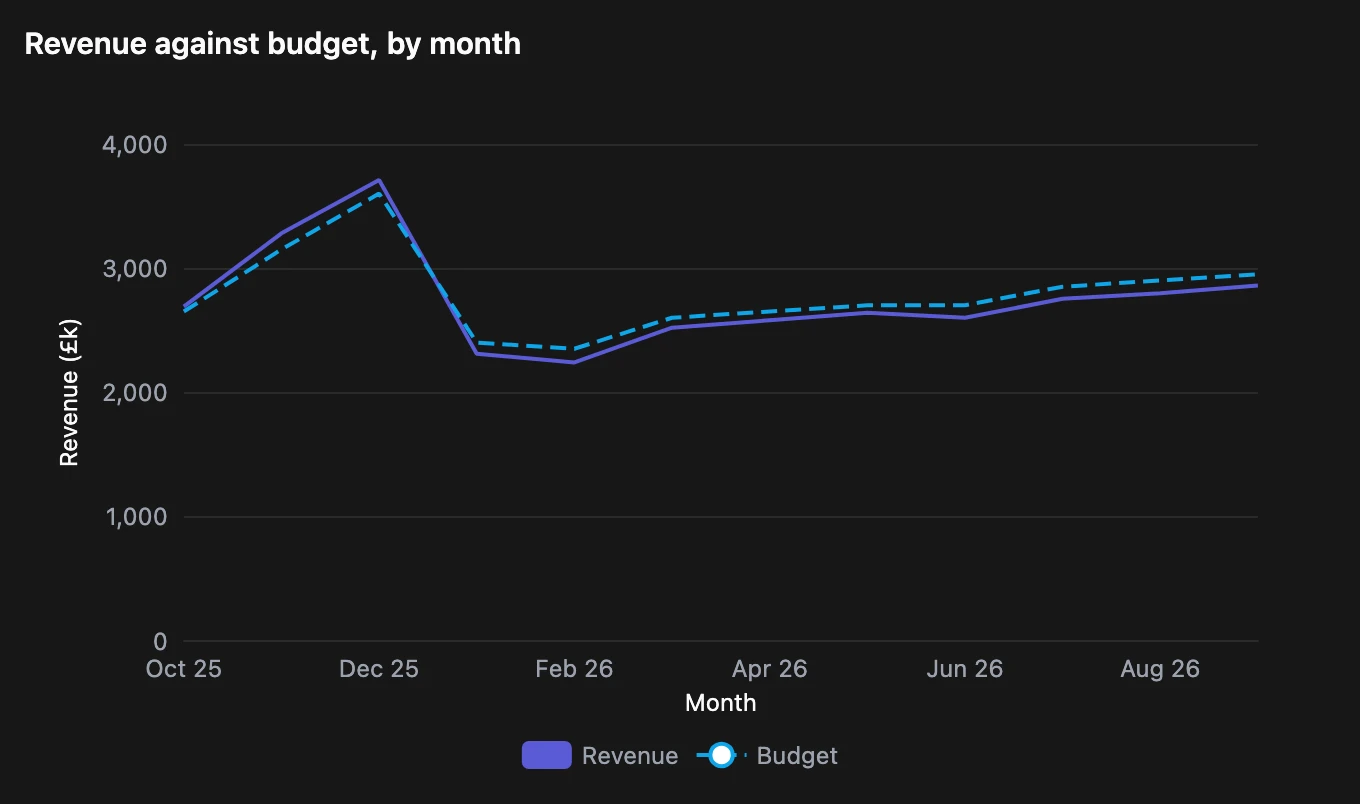

One line per measure

Prompt

Monthly revenue against budget for the last 12 months, with the budget dashed.

render_chartjson

JSON

Copy

{
  "sql": "SELECT month, revenue / 1000 AS revenue, budget / 1000 AS budget FROM monthly_revenue_budget WHERE month >= DATE '2025-10-01' AND month < DATE '2026-10-01' ORDER BY month",
  "chartType": "line",
  "xAxisType": "categorical",
  "title": "Revenue against budget, by month",
  "encode": { "x": "month", "y": ["revenue", "budget"] },
  "fields": [
    { "name": "month", "label": "Month" },
    { "name": "revenue", "label": "Revenue", "format": "number" },
    { "name": "budget", "label": "Budget", "format": "number" }
  ],
  "axes": { "y": { "title": "Revenue (£k)" } },
  "series": { "Budget": { "line": "dashed" } }
}

Each measure is its own line on one shared axis, which the call titles. “Dashed” styles one line; dotted lines, markers and colours work the same way.

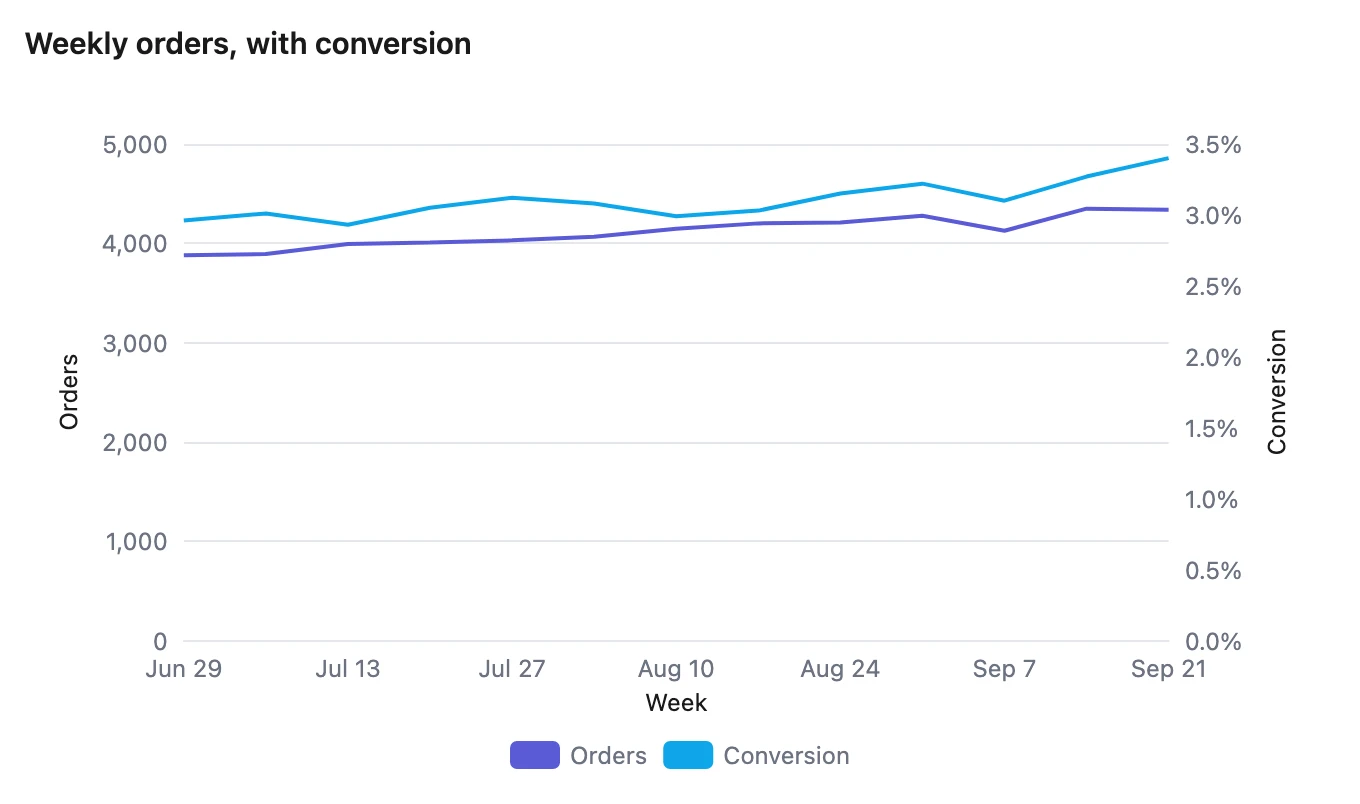

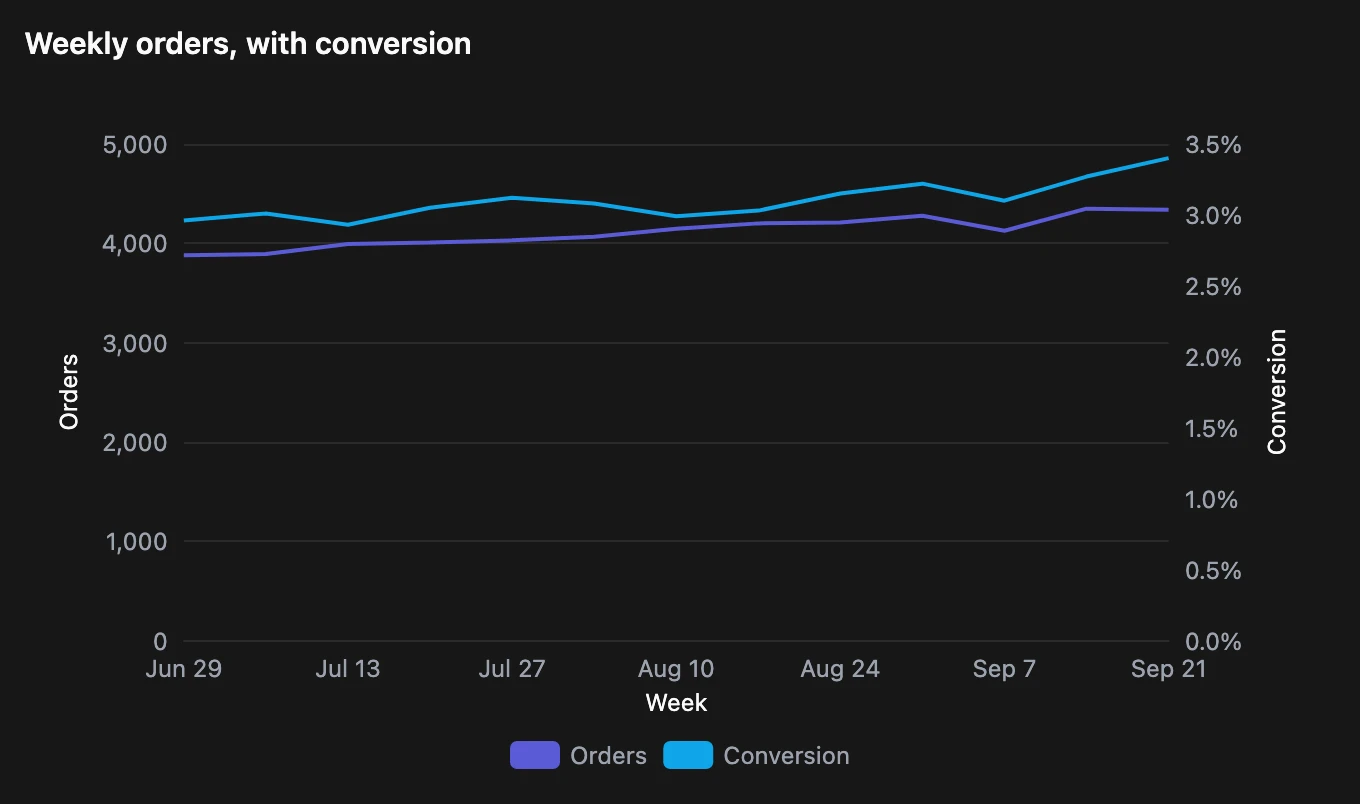

A second axis

Prompt

Weekly orders since July, with the conversion rate on a second axis.

render_chartjson

JSON

Copy

{
  "sql": "SELECT week_start AS week, orders, conversion FROM weekly_orders WHERE week_start >= DATE '2026-06-29' ORDER BY week_start",
  "chartType": "line",
  "xAxisType": "categorical",
  "title": "Weekly orders, with conversion",
  "encode": { "x": "week", "y": "orders", "y2": "conversion" },
  "fields": [
    { "name": "week", "label": "Week" },
    { "name": "orders", "label": "Orders", "format": "number" },
    { "name": "conversion", "label": "Conversion", "format": "percent" }
  ]
}

A measure in other units goes on a right axis, with its own scale and format. A target line can sit on either axis.

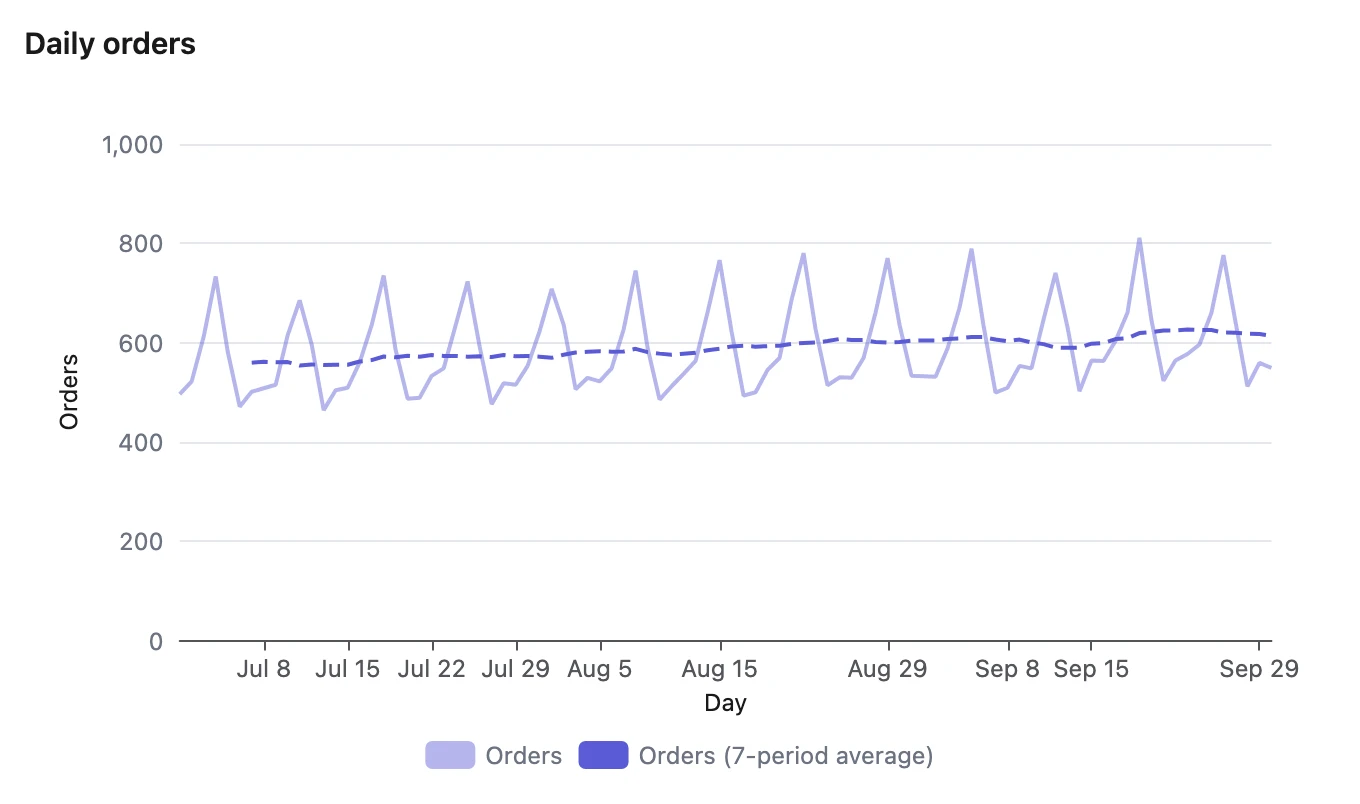

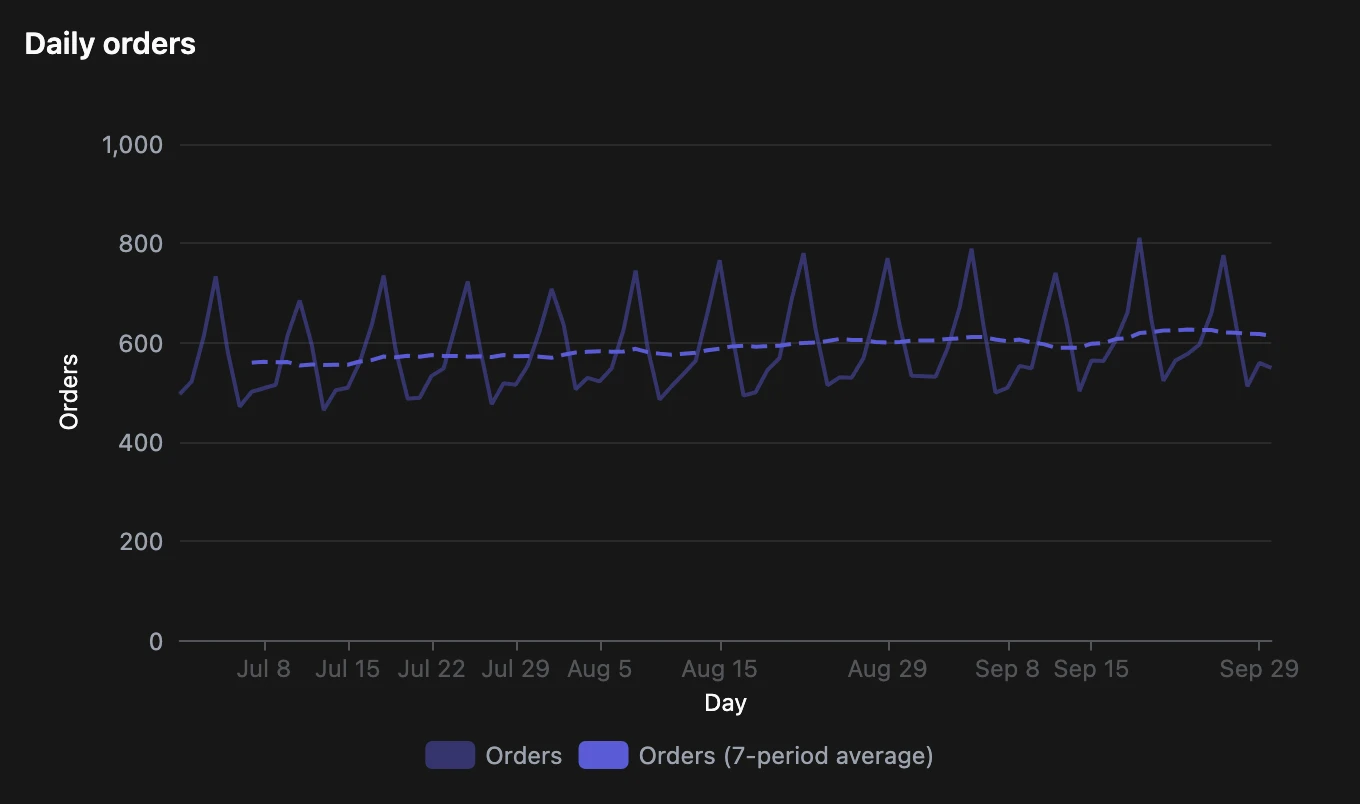

A moving average

Prompt

Daily orders since July, with a 7-day average.

render_chartjson

JSON

Copy

{
  "sql": "SELECT order_date AS day, COUNT(*) AS orders FROM orders WHERE order_date >= DATE '2026-07-01' GROUP BY 1 ORDER BY 1",
  "chartType": "line",
  "title": "Daily orders",
  "encode": { "x": "day", "y": "orders" },
  "fields": [
    { "name": "day", "label": "Day" },
    { "name": "orders", "label": "Orders", "format": "number" }
  ],
  "overlay": { "kind": "movingAverage", "window": 7 }
}

The dashed line averages the last 7 points, with the daily line faded behind it. “A trend line” fits a straight line instead.

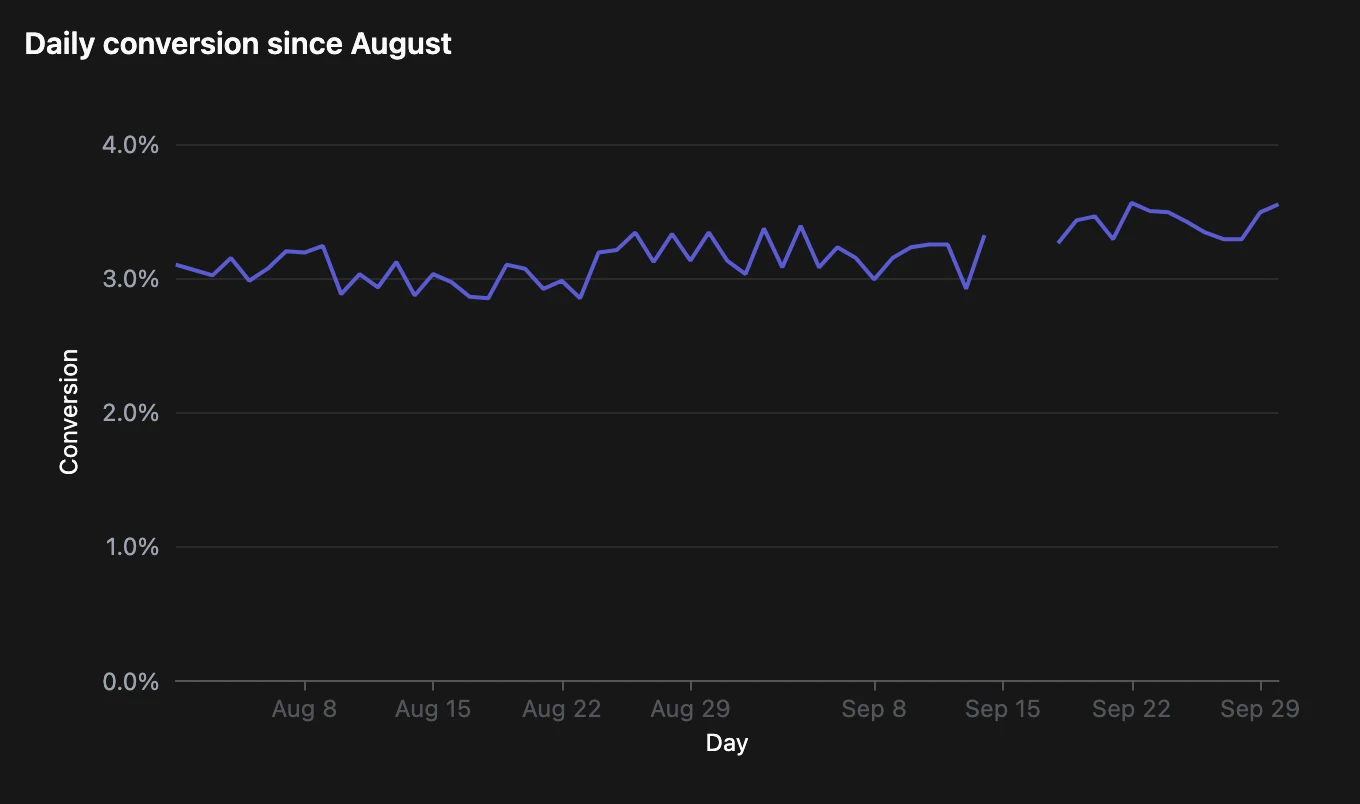

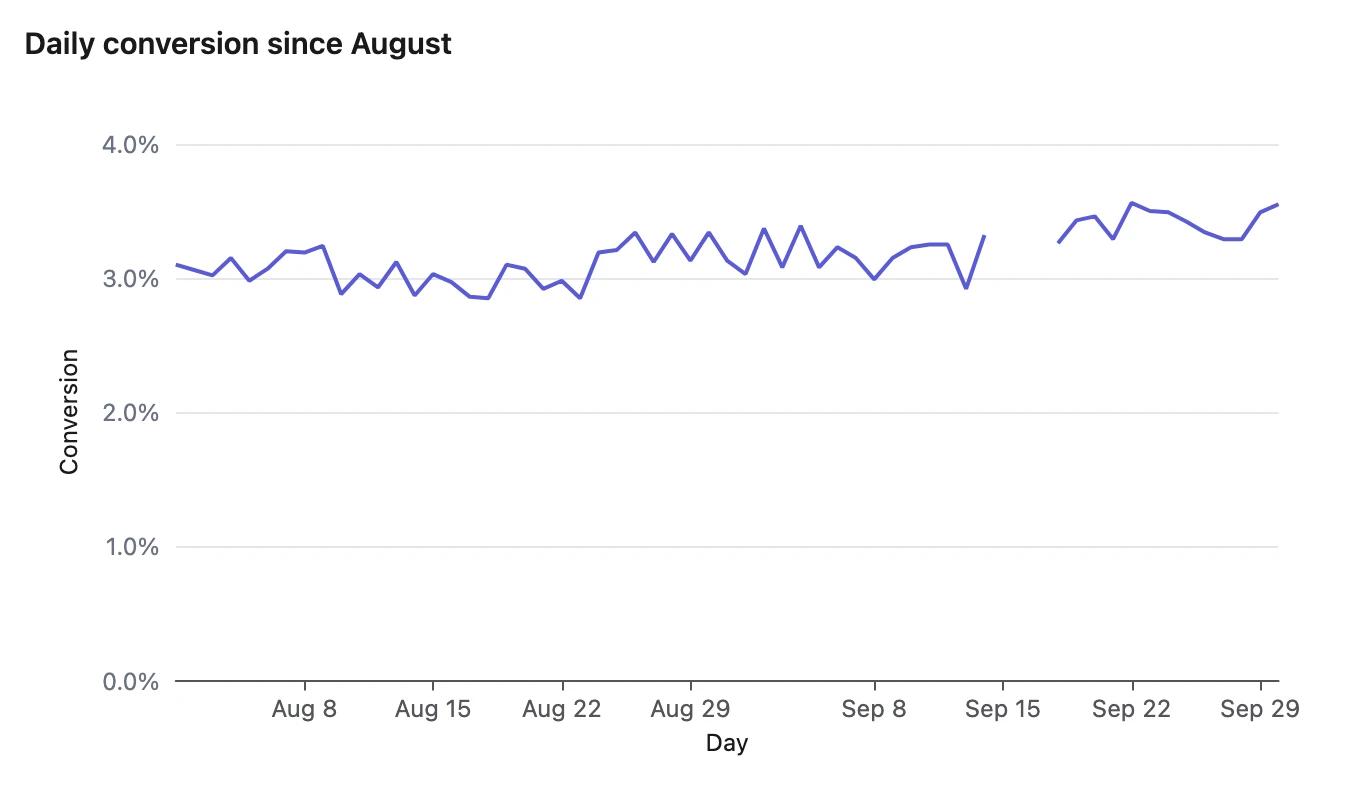

A break for missing days

Prompt

Daily conversion since August, with a gap where tracking was down.

render_chartjson

JSON

Copy

{
  "sql": "SELECT day, orders * 1.0 / sessions AS conversion FROM daily_sessions WHERE day >= DATE '2026-08-01' ORDER BY day",
  "chartType": "line",
  "title": "Daily conversion since August",
  "encode": { "x": "day", "y": "conversion" },
  "fields": [
    { "name": "day", "label": "Day" },
    { "name": "conversion", "label": "Conversion", "format": "percent" }
  ],
  "fillGaps": "gap"
}

By default the line joins across days with no row. A break suits a rate like this one; counts can fill missing days with 0, and balances with the last value.

Options and limits

• There is no cap on lines.
• A chart query returns up to 5,000 rows by default.
• Dates sit on a timeline unless the chart is stacked or the call asks for one slot per row. The weekly and monthly examples above ask for slots.
• A 7-day average has no value for the first 6 days, or for any window that holds a gap.
• A 100% stack takes no moving average or trend line, and a line on the right axis gets none.
• Gap filling stops after 10,000 periods.
• Labels and axis titles run to 60 characters.
• A line chart draws no data labels or smoothed lines. No chart draws a log scale, custom hex colours or zoom.

When Bonnard draws something else

• Text on the x axis implies an order that may not exist. For categories, the product suggests a bar chart.
• A target that changes each period, such as a monthly budget, is a measure. The agent draws it as its own line, as in the budget example.
