Waterfall charts in your AI client

Bonnard draws a waterfall chart to walk a total from one level to another through signed changes.

The examples use Acme, a demo retailer that reports in pounds. Each variant is a few words in the question. A follow-up changes a chart already drawn.

How an agent draws it

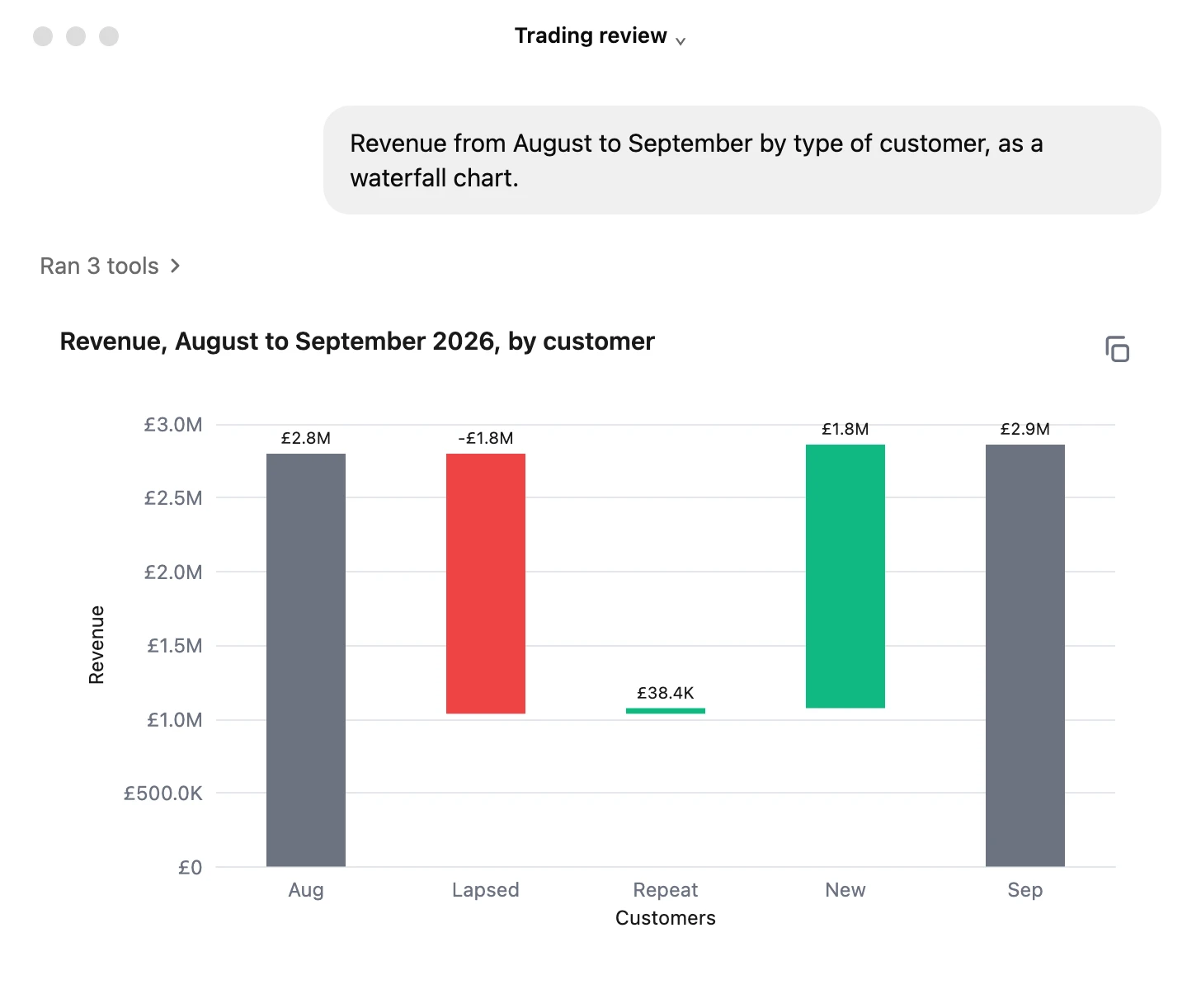

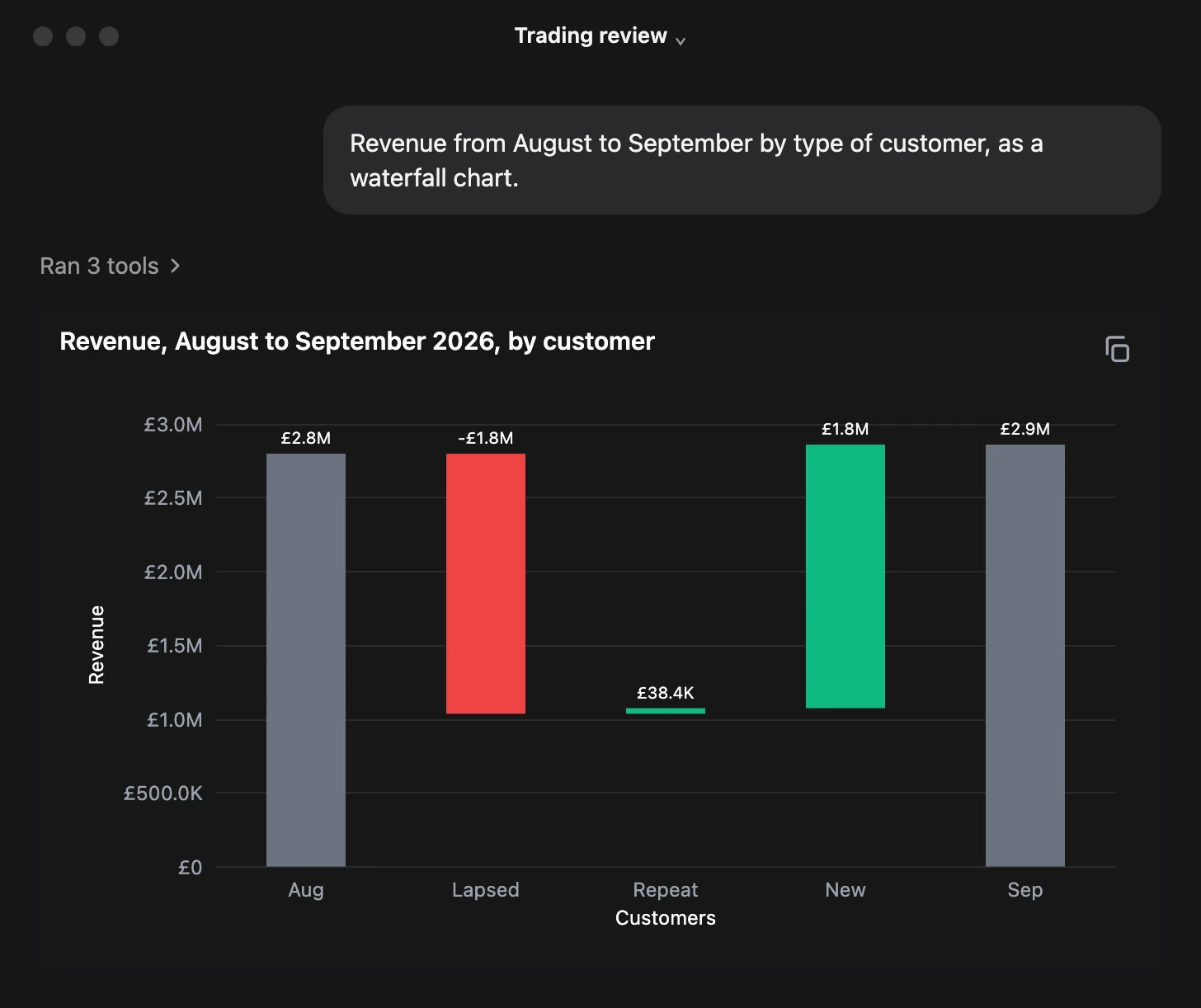

The chat above ran three tools, in this order:

explore_schema finds the tables and their columns: here customer_months, with customer_id, month and revenue.
sql_query runs a read-only query, so the agent can check the numbers first.
render_chart takes the SQL and the chart options. It runs the query and returns the chart the chat draws.

The render_chart call behind the chart above:

render_chartjson

JSON

{
  "charts": [
    {
      "sql": "WITH c AS (SELECT customer_id, SUM(CASE WHEN month = DATE '2026-08-01' THEN revenue END) AS aug, SUM(CASE WHEN month = DATE '2026-09-01' THEN revenue END) AS sep FROM customer_months WHERE month >= DATE '2026-08-01' GROUP BY customer_id) SELECT step, amount, kind FROM (SELECT 1 AS n, 'Aug' AS step, SUM(aug) AS amount, 'opening' AS kind FROM c UNION ALL SELECT 2, 'Lapsed', -SUM(aug), 'change' FROM c WHERE sep IS NULL UNION ALL SELECT 3, 'Repeat', SUM(sep - aug), 'change' FROM c UNION ALL SELECT 4, 'New', SUM(sep), 'change' FROM c WHERE aug IS NULL UNION ALL SELECT 5, 'Sep', SUM(sep), 'closing' FROM c) AS w ORDER BY n",
      "chartType": "waterfall",
      "title": "Revenue, August to September 2026, by customer",
      "encode": { "x": "step", "y": "amount" },
      "fields": [
        { "name": "step", "label": "Customers" },
        { "name": "amount", "label": "Revenue", "format": "currency", "currency": "GBP" }
      ]
    }
  ]
}

The query returns one row per bar, in order: each change signed, and a kind column that marks the opening and closing totals.

A call takes up to 10 charts, shown as a carousel. Each example below shows its one entry. A connected agent reads the full option reference with explore_docs, topic charts/waterfall.

Subtotals

Prompt

September from gross sales to gross profit, with net revenue as a subtotal.

render_chartjson

JSON

{
  "sql": "SELECT line AS step, amount, CASE line WHEN 'Gross sales' THEN 'total' WHEN 'Net revenue' THEN 'subtotal' WHEN 'Gross profit' THEN 'total' ELSE 'change' END AS kind FROM monthly_pnl WHERE month = DATE '2026-09-01' ORDER BY line_no",
  "chartType": "waterfall",
  "title": "September 2026, gross sales to gross profit",
  "encode": { "x": "step", "y": "amount" },
  "fields": [
    { "name": "step", "label": "P&L line" },
    { "name": "amount", "label": "Amount", "format": "currency", "currency": "GBP" }
  ]
}

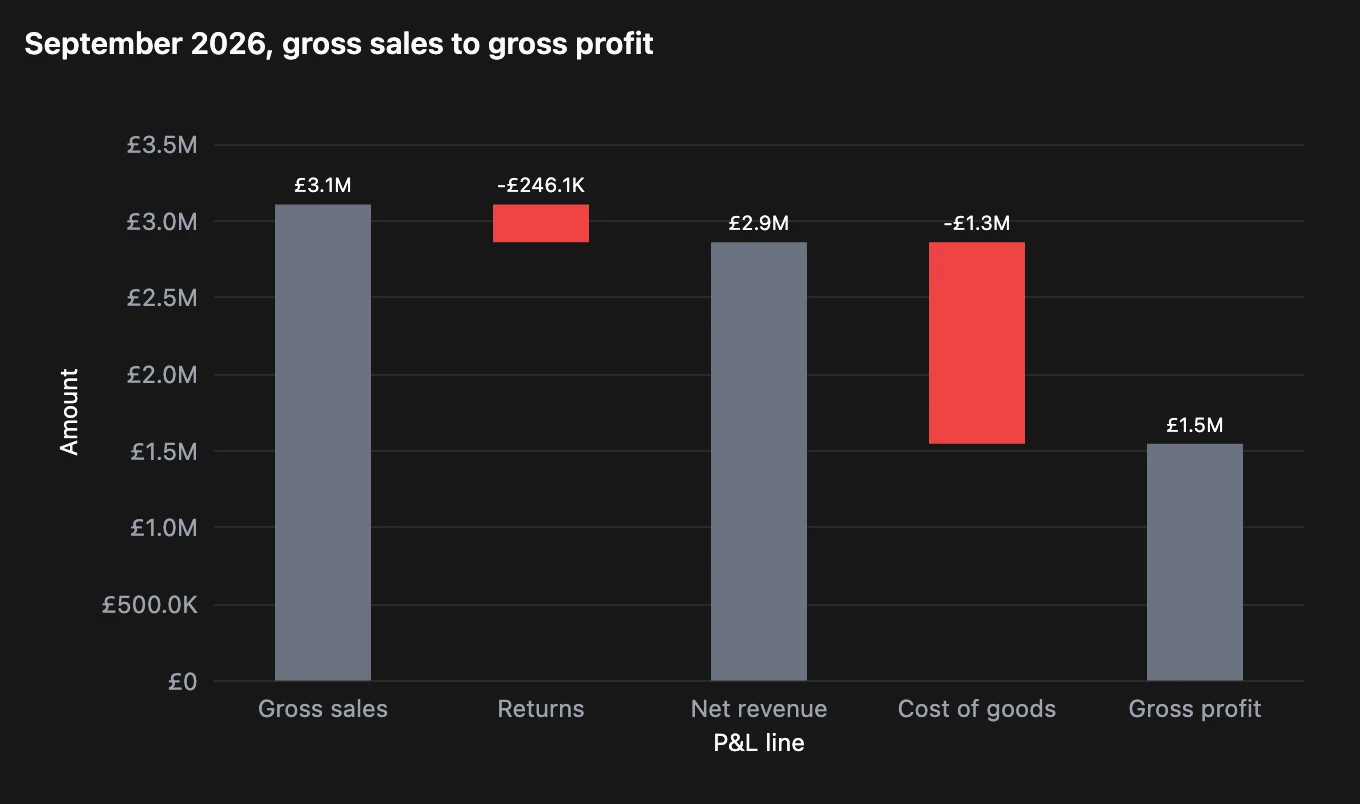

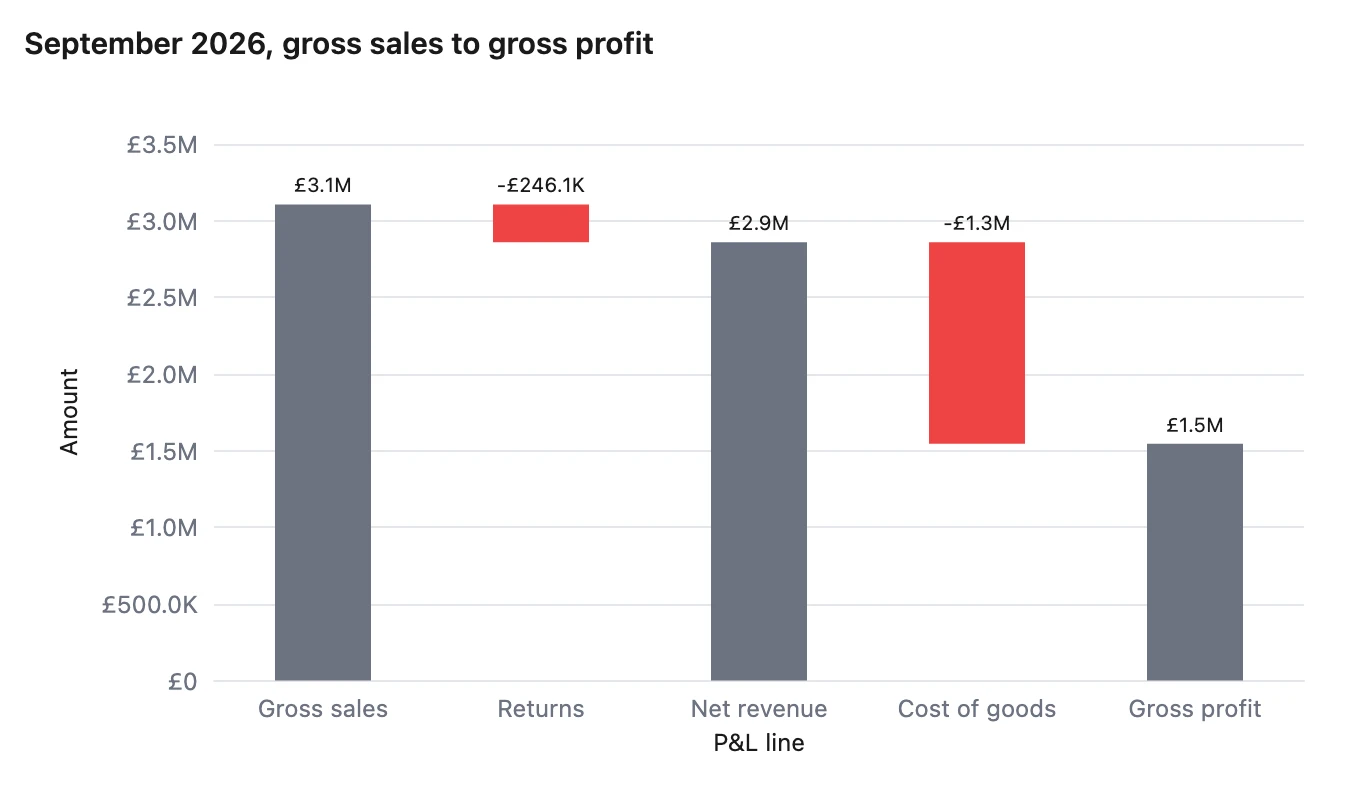

A subtotal row holds the level at that point, drawn from zero. The changes after it start again from that level.

A variance walk

Prompt

Q3 revenue by region against the £150K weekly target, as a variance walk.

render_chartjson

JSON

{
  "sql": "WITH q AS (SELECT region, revenue FROM weekly_region_revenue WHERE week_start >= DATE '2026-06-29') SELECT step, amount, kind FROM (SELECT 0 AS n, 'Target' AS step, COUNT(*) * 150000 AS amount, 'opening' AS kind FROM q UNION ALL SELECT 1, region, SUM(revenue - 150000), 'change' FROM q GROUP BY region UNION ALL SELECT 2, 'Actual', SUM(revenue), 'closing' FROM q) AS w ORDER BY n, amount DESC",
  "chartType": "waterfall",
  "title": "Q3 2026 revenue against target, by region",
  "encode": { "x": "step", "y": "amount" },
  "fields": [
    { "name": "step", "label": "Region" },
    { "name": "amount", "label": "Revenue", "format": "currency", "currency": "GBP" }
  ]
}

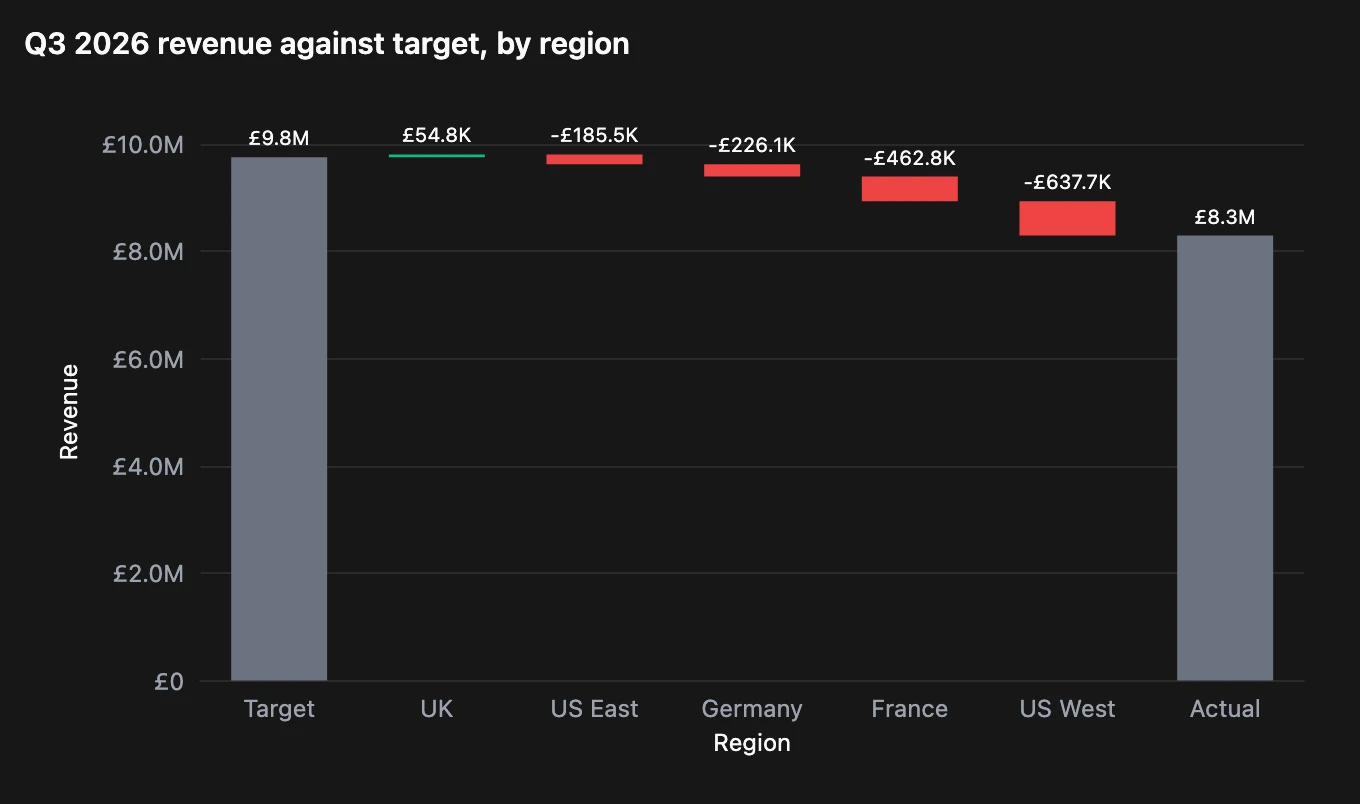

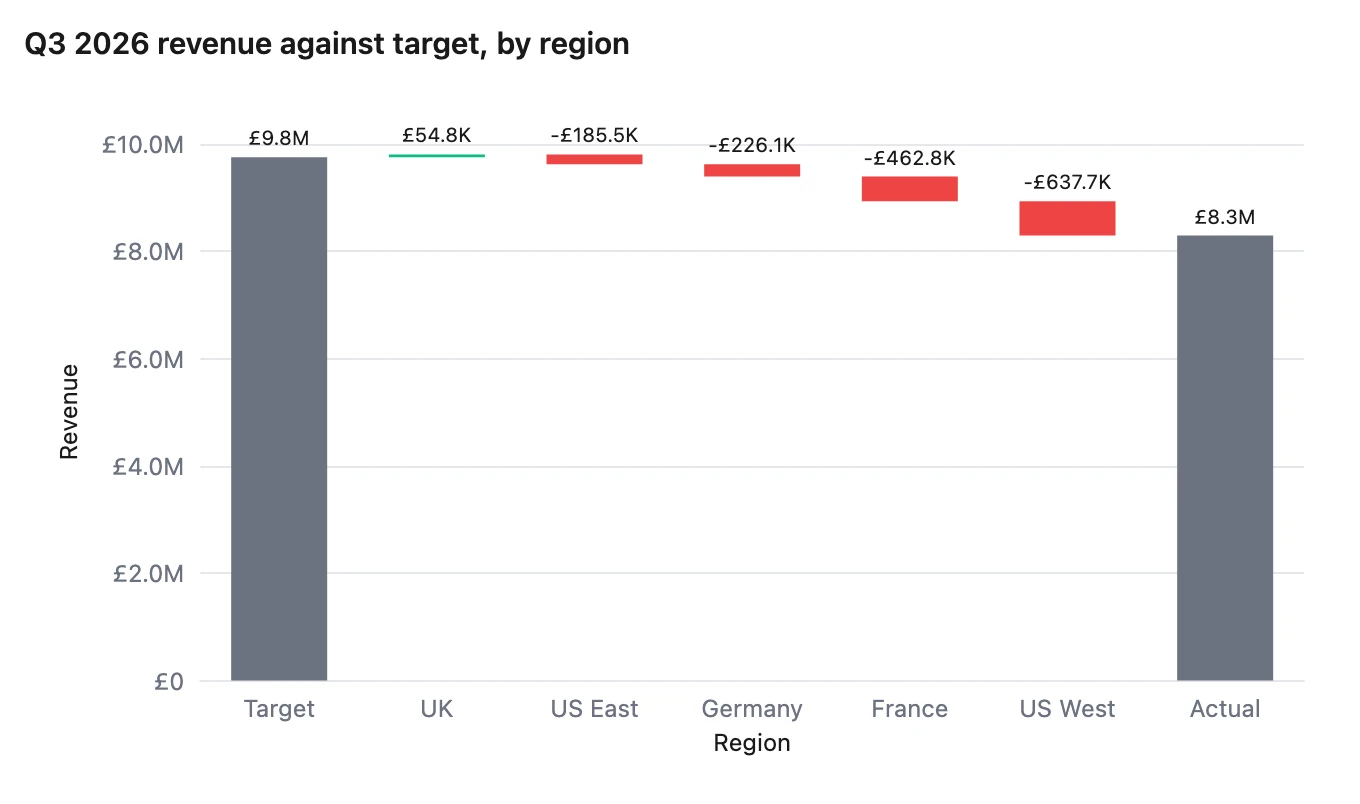

The target opens the walk, and each region adds its gap above or below it. Steps keep the query’s row order, so the SQL sorts the regions.

A running total

Prompt

Revenue so far this year, month by month, as a running total.

render_chartjson

JSON

{
  "sql": "SELECT step, amount, kind FROM (SELECT month_start AS n, month_label AS step, revenue AS amount, 'change' AS kind FROM monthly_revenue WHERE month_start >= DATE '2026-01-01' UNION ALL SELECT DATE '2026-12-31', 'Total', SUM(revenue), 'total' FROM monthly_revenue WHERE month_start >= DATE '2026-01-01') AS w ORDER BY n",
  "chartType": "waterfall",
  "title": "Revenue by month, 2026 to date",
  "encode": { "x": "step", "y": "amount" },
  "fields": [
    { "name": "step", "label": "Month" },
    { "name": "amount", "label": "Revenue", "format": "currency", "currency": "GBP" }
  ]
}

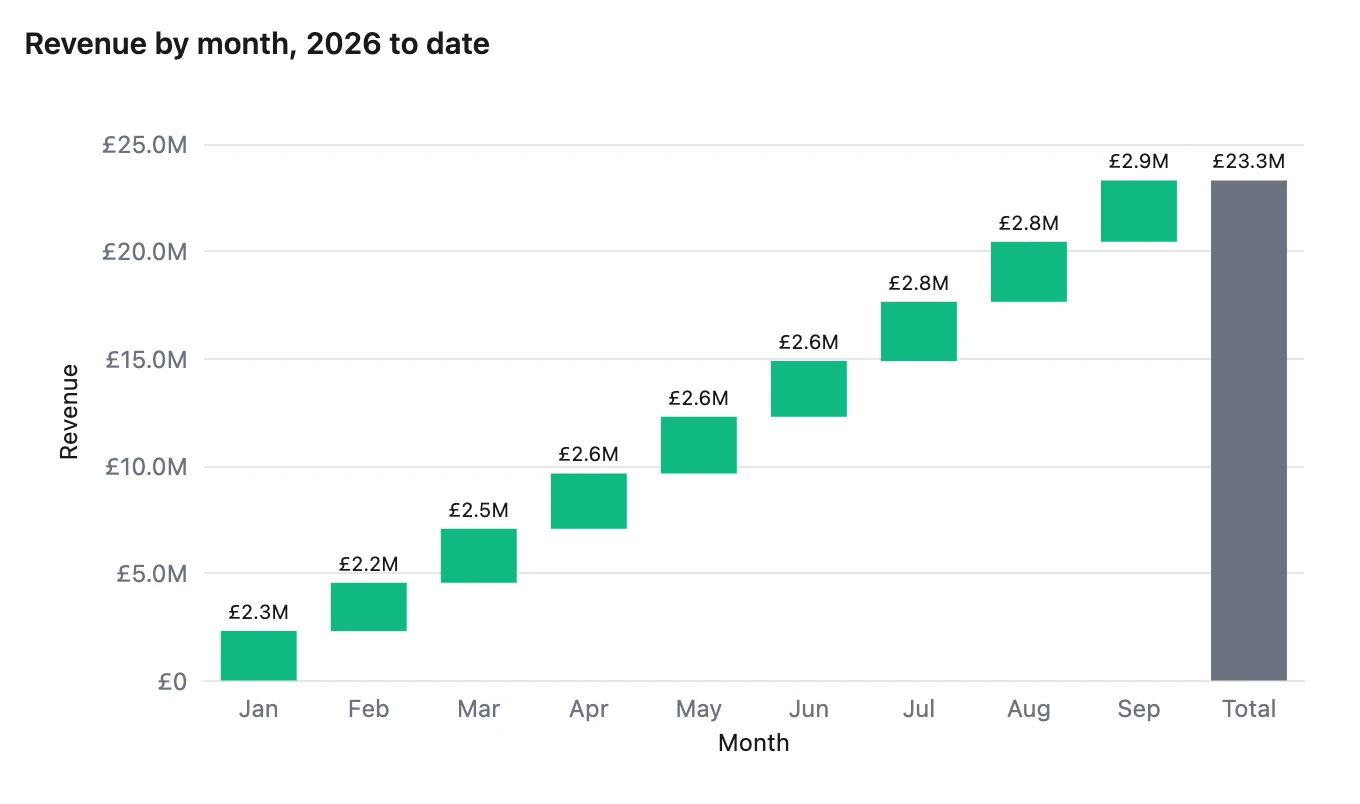

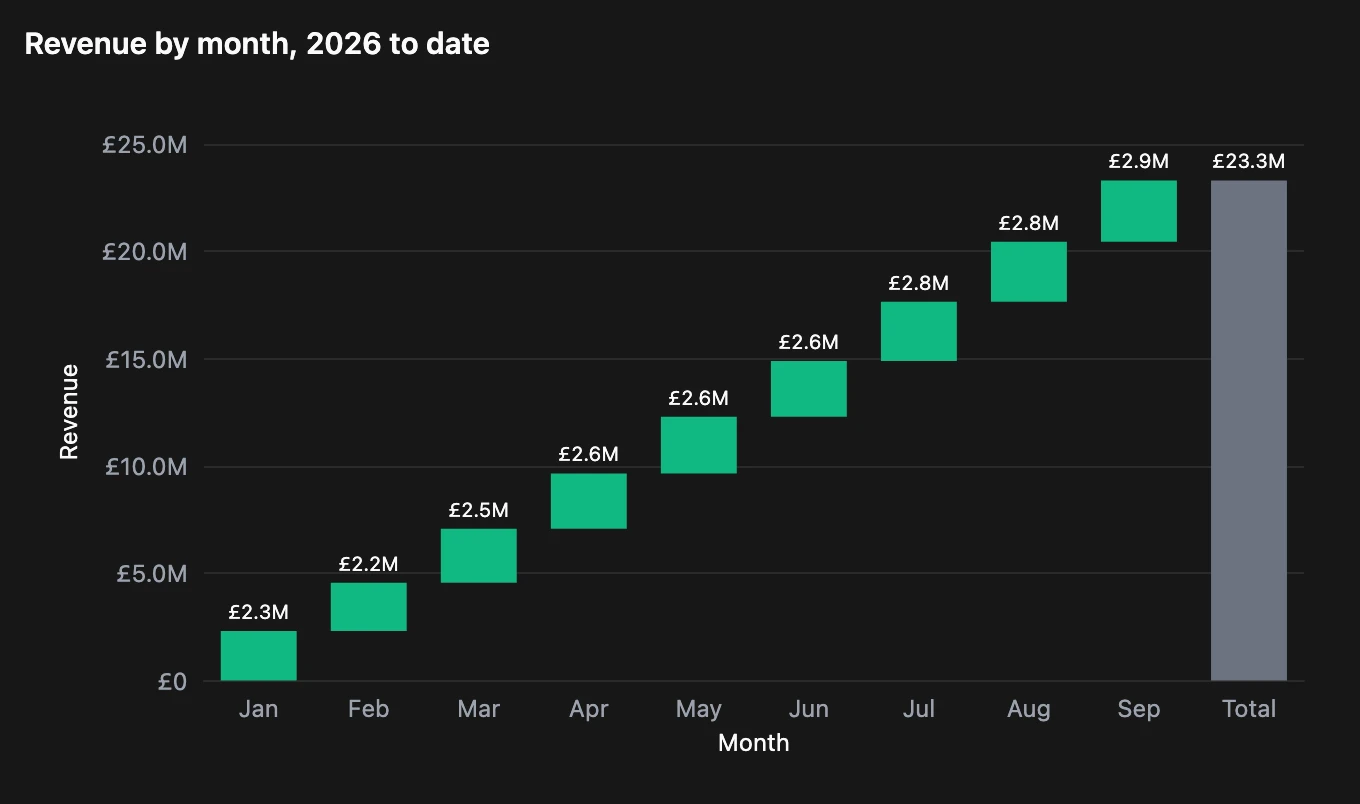

The query marks only the last row as a total, so the walk starts from zero with January.

Options and limits

What a waterfall chart takes
Ask for	What Bonnard draws
”a waterfall” or “a bridge”	Steps in row order: gains green, losses red, totals grey
”from opening to closing”	Total bars at each end, with the changes between
”with a subtotal”	A total bar inside the walk, which the next change starts from
”in pounds” or “as a percentage”	Currency, percent or compact values on the axis and bars
”start the axis at £1M”	A fixed value axis, with a note under the chart when it starts above zero
”call the axis Revenue”	Axis titles in place of the column labels

A total is a row whose marker column reads total, subtotal, opening, closing, start, end, net or balance.
With no marker column, the first and last rows become the totals, and Bonnard tells the agent it guessed.
A waterfall draws one measure: a list of measures draws only the first.
It needs at least two rows: a starting total and one change.
Bars carry their values up to 12 steps. At phone width, when one value does not fit its bar, only the totals keep theirs.
The colours are fixed. A waterfall takes no series colours, highlight, legend, target lines or trend lines.
Labels and axis titles run to 60 characters.
No chart draws a log scale, custom hex colours or zoom.
